AIO 4.5 - John Deere Danfoss Valve

1

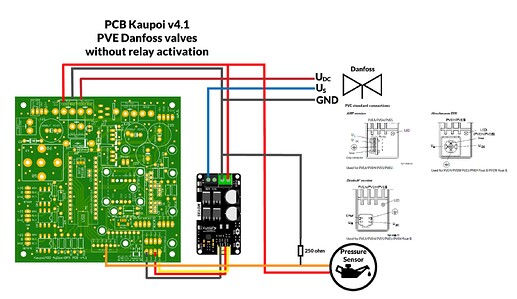

I need to install a standard AIO on a JD Danfoss valve; I previously used this diagram.

image1866×1081 152 KB

Which pins correspond to this new connector?

Udc=
Us=
GND=

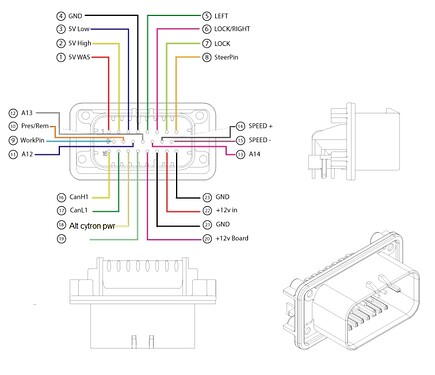

Ampseal pinout
Ampseal pinout872×751 81.5 KB

Thanks for the help; I don’t want to break anything.

2

DANFOSS PVE AIO v4.5

Pin 1 US ──────────────── Pin 5 LEFT

Pin 2 UDC ──────────────── Pin 7 LOCK

Pin 3 GND ──────────────── Pin 4 / 21 / 23 GND

Pin 4 ERROR ────────────── NO CONECT

1 Like
