Canbus PCB UDP issue

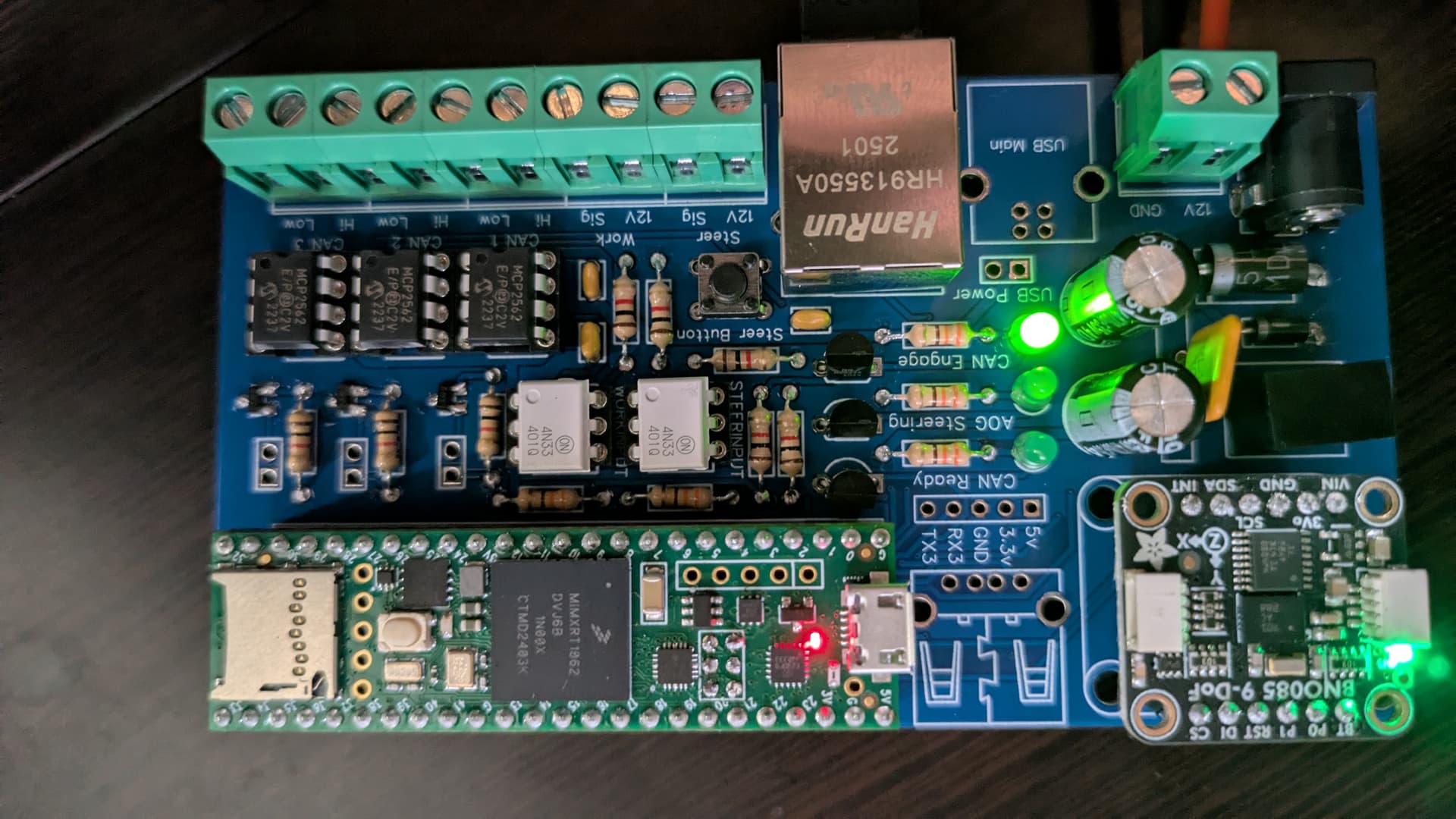

Anyone have advise for figuring out why canbus PCB’s aren’t working? I have put 2 of CommonRails canbus boards together. I ordered blank boards and I soldered everything. Flashed code in ide and set for model and panda mode. Both boards do the same thing. BNO085 is the only light that comes on and not getting anything on UDP in AgIO. If I press the reset button on Teensy then the ‘CAN Engage’ led comes on.
I checked voltage on both BNO and teensy, seems like the correct pins are getting 3.3v and 5v.


Isn’t the subnet 192.168.5 ?

You have the wrong Ethernet connector soldered onto the board

Yep, wrong ethernet connector. Also, you need to go into the Service Tool and select “P” for 460800 GPS. Also select the tractor model while you’re in there.

Dang, guess I was being lazy and only ordered the AIO v4.5 ethernet adapters. I’ll get new ones coming. Thank you for the replies! This model from DigiKey should work?

Update: New Ethernet adapter is in and board is working now. Thank you guys!

1 Like

Help me understand what is the difference between the two ethernet connections?

They are just two different models. Work exactly the same way but different pinout on the pcb side.

CAN PCB originally used the same one as the Teensy makers use / supply.

Later on when the AIO boards were made they used a more common version, but had a different pinout.
