Hello , I look for how to do to steering by AOG , by can bus and isobus a PUMA case IH 200 cvx . I look some question about but it seem it is old systeme like pro700 . Somebody succes in this way ?
Connect to pins h and j in the green diagnostic connector behind the seat, turn on the steering valve and do a calibration in h menu agopen should then steer your cvx providing nothing is wrong with the system
with AFS1200 ?? you sure ? by isobus ? can you give me some drowing abaout this ? whitch hardware you use ?

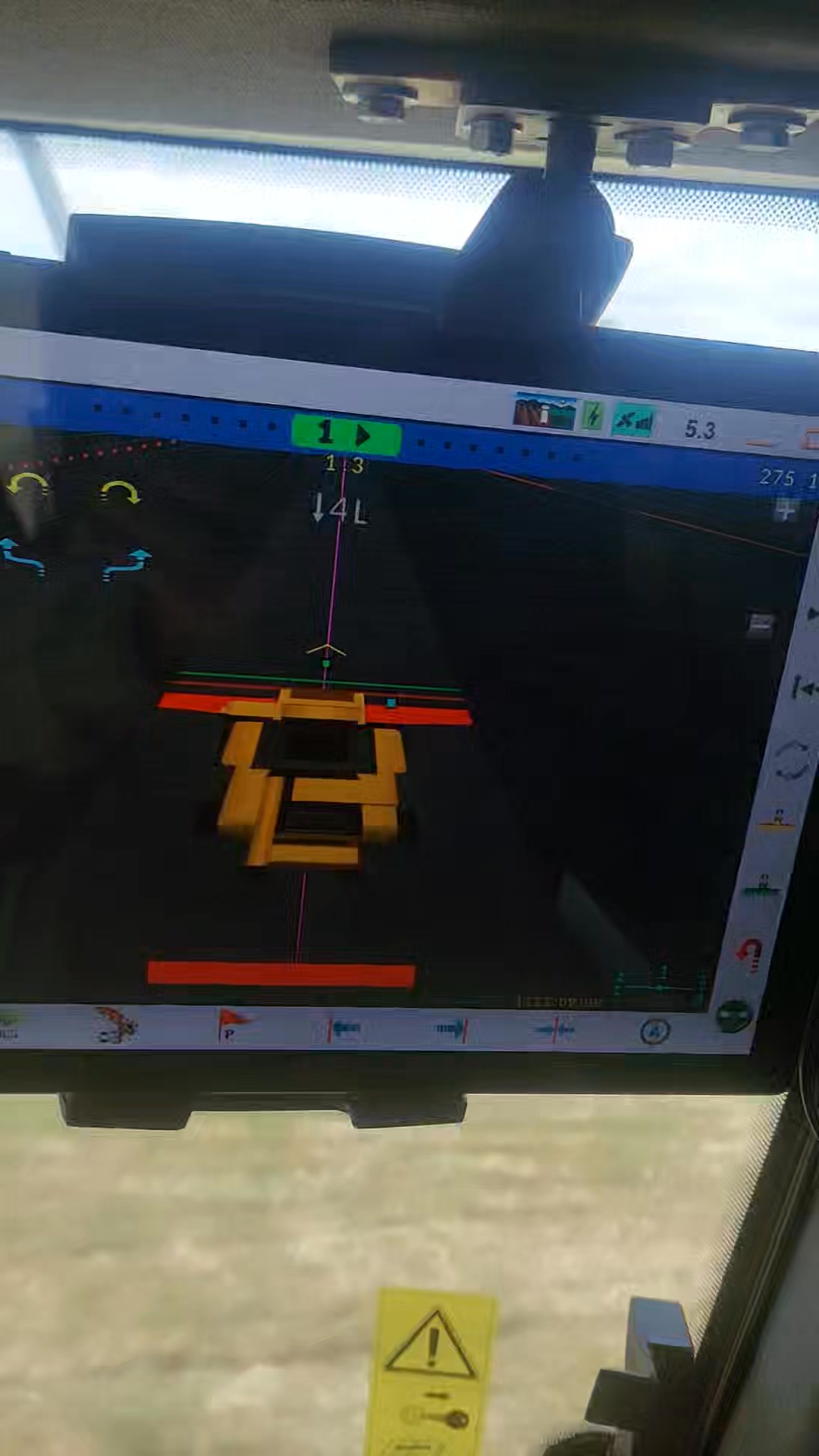

Ive done a 25 plate t7.225. This was the inteliview screen. Which screen you got You can use the autosteer master switch to toggle between 3 types of steering nav/isobus and 1 other i cant remember.
I think ive read someone getting a new style cnh with the new raven system on it steering with aog.
I just used the v4.5 aio board.

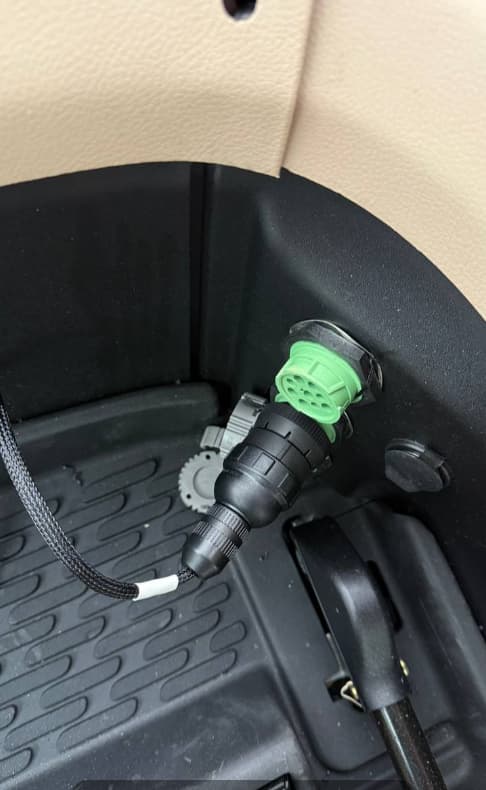

Connected to green socket behind seat
You wil need the diagnosic plug to go into the pillar to turn all the 'steer ’ related stuff on in h menu and will need to do a WAS and SPOOL calibration before the steering valve becomes activated. If its had steering on it before you wont need to do this
I think you were on old system, not the last
New Case AFS have a special unlock from CNHi dealer named “3rd Class steering”. Usually without this unlock you won’t be able to enable 3rd party autoguidance.
1 Like
Hello
I tried connecting to a latest-generation New Holland CX7.90, which is GPS-ready, via the CAN 2 port on the diagnostic connector (pin H, pin J).
I can’t access the steering angle or the steering valve.

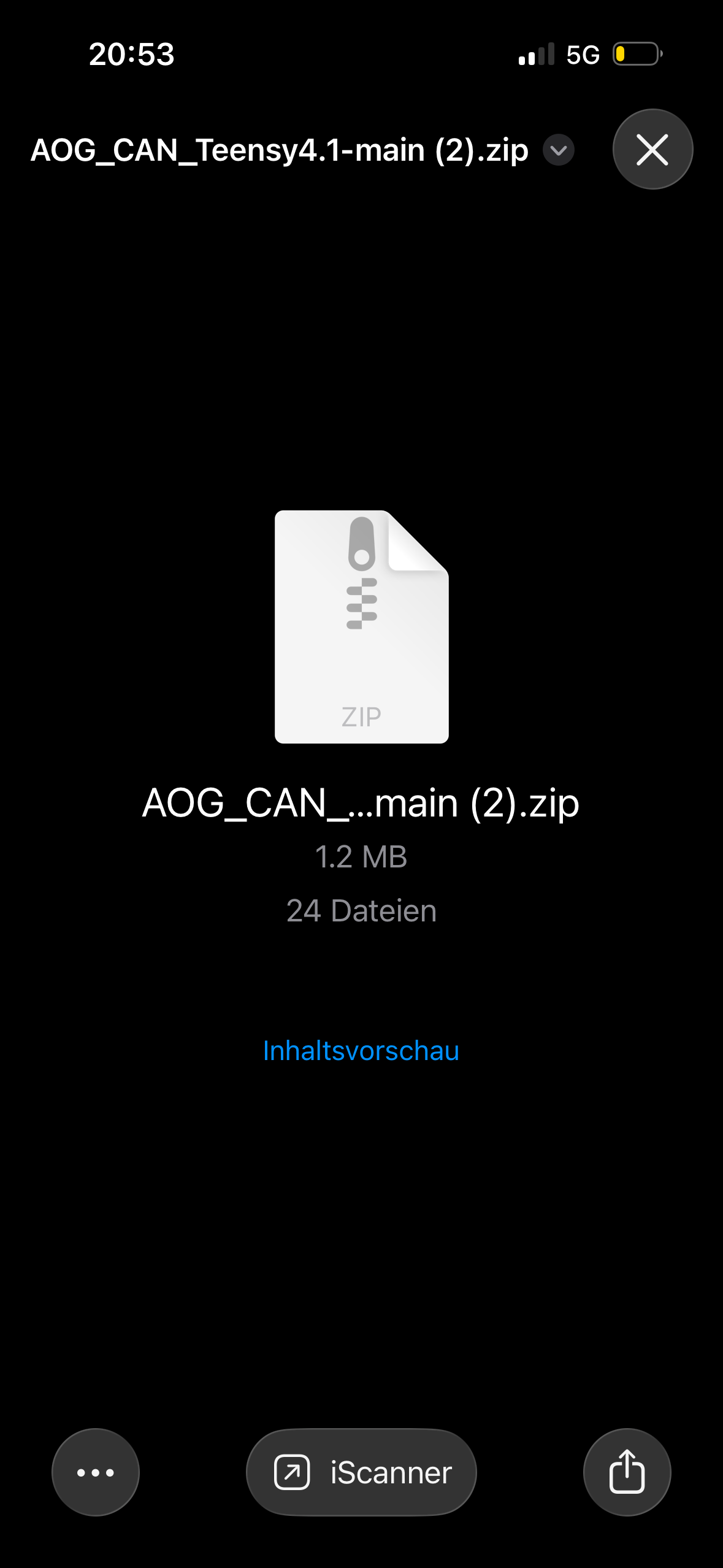

I have a Teensy with the CAN bus code included in the attachment.
Does anyone have any experience with this?
Yes I don’t believe it’s possible Via Canbus.
I’ve just done a 2021 7.90 direct to valve following Florian’s excellent guide.
The was is available in the place where the nav controller sits down by the seat but then you’ll need to wire direct to the valve under the cab.
