We are selling a fit all autosteer valve. It is usable with Open Center, Closed Center with or without Load Sense, and hybrid systems that have a Open Center gear pump but a load sense steering valve. Load reacting or non-load reacting steering valves are compatible. Uses Hydraforce (Bosche Rexroth) valve components. Pricing is USD.
This valve can be operated by any autosteer controller system today.
Manifold Kit contains: part# KITVALVE-SV005-1

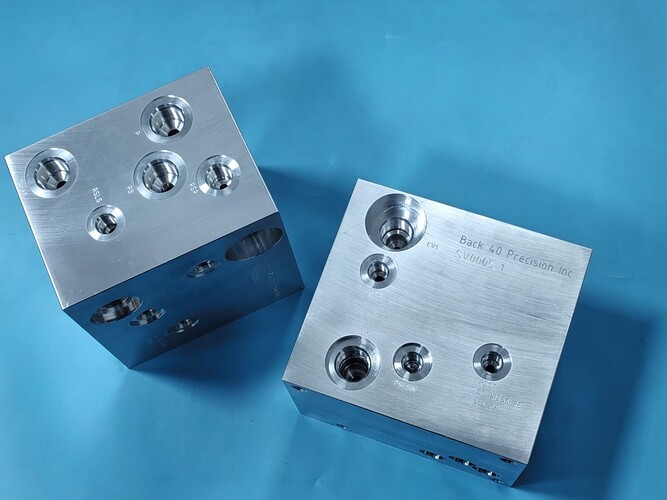

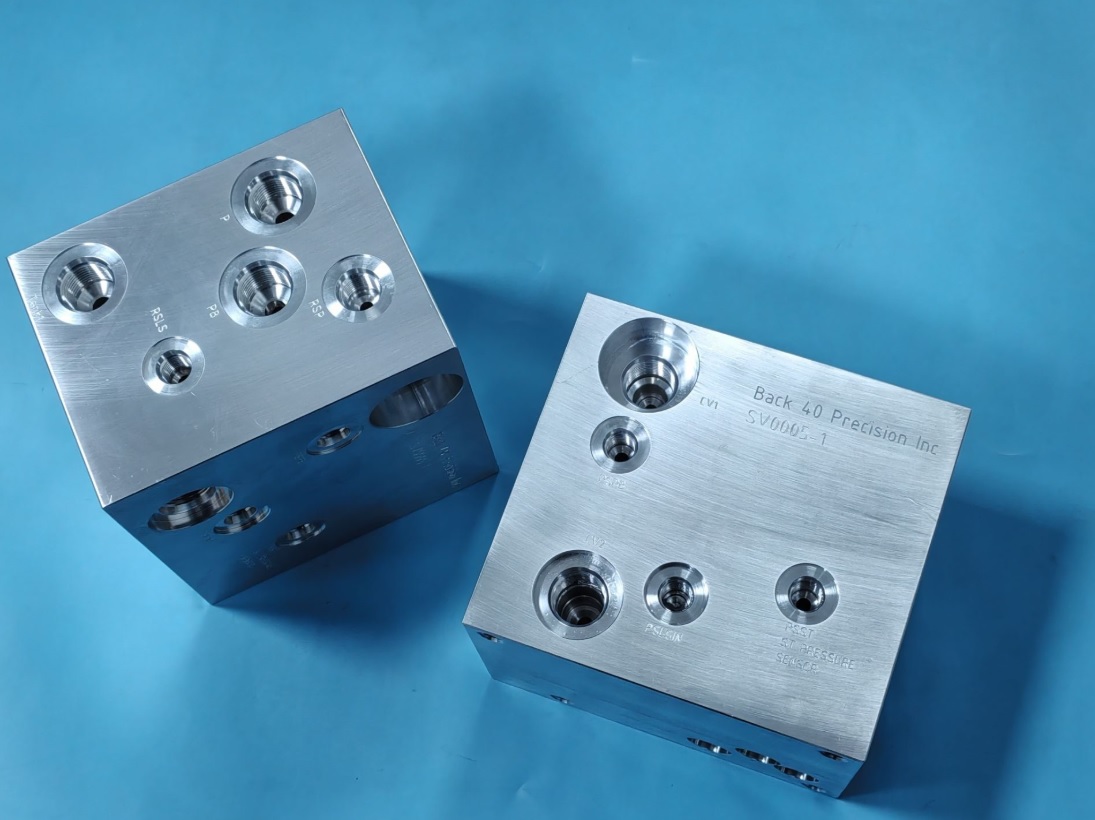

1- SV0005-1 Valve Manifold, machined 6061T6 Aluminum
$406.44
Cartridge Kit Open Center contains: part# KITCART-SV005-1-OC
1- RV08-22A-0-N-26 adjustable relief valve
1-EC10-42-0-N-80 pressure compensator cartridge
1- CV08-20-0-N-4 check valve
1- SP10-58C-0-N-12-ER pwm solenoid with 12v Ecoils
1- SV08-45-0-N-12-ER solenoid normally closed with 12v Ecoils
1- SV08-42-0-N-12-ER solenoid normally open with 12v Ecoils
2- LS08-30-0-N shuttle check valves
$836.47 on order
Cartridge Kit Closed Center contains: part# KITCART-SV005-1-CC
1- RV08-22A-0-N-26 adjustable relief valve
1- CP10-4J-N cavity plug
1- CV08-20-0-N-4 check valve
1- SP10-58C-0-N-12-ER pwm solenoid with 12v Ecoils
1- SV08-45-0-N-12-ER solenoid normally closed with 12v Ecoils
1- SV08-42-0-N-12-ER solenoid normally open with 12v Ecoils
2- LS08-30-0-N shuttle check valves
$801.49 on order
Plug Kit Contains: part# KITPLUG-SV005-1
9- #2 SAE plug
7- #4 SAE plug
1- #6 SAE plug
2- #8 SAE plug
$65.20
Pressure sensor: part# KITSENSE-063G2211
Danfoss MBS1250, 0-5000psi, 1-5 volt signal. 3 pin DT, SAE #4 fitting
$96.00
