I am planning on using a RC11-2 board to control 5 section arag valves with two wires switches + and - to open and close the sections and the main valve. Do i then need to use dpdt relays between the RC11-2 board and the valves?

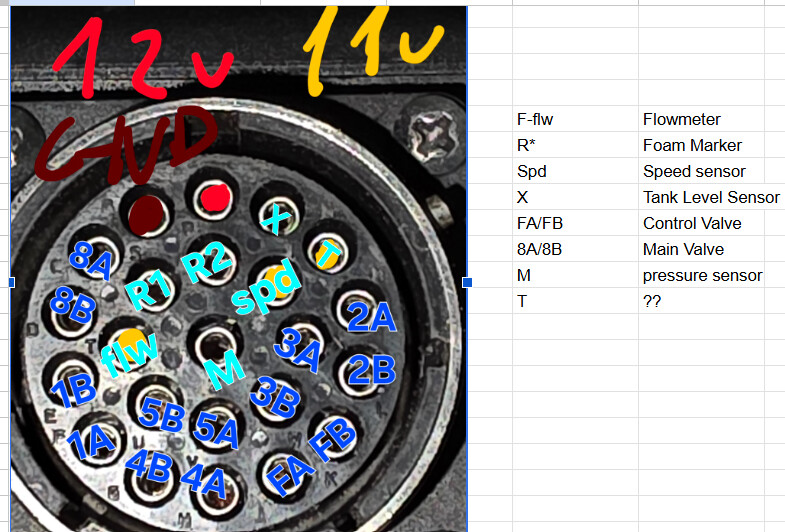

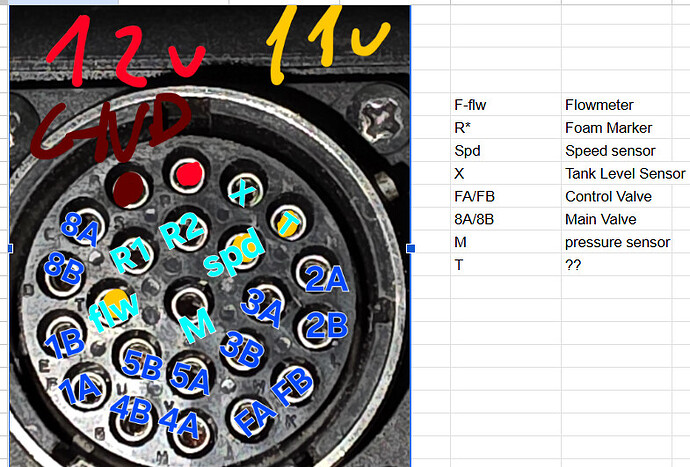

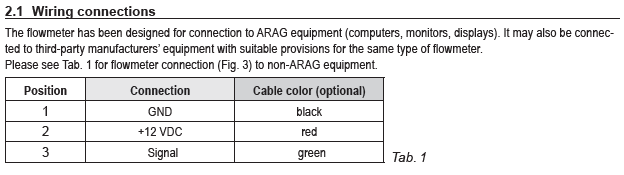

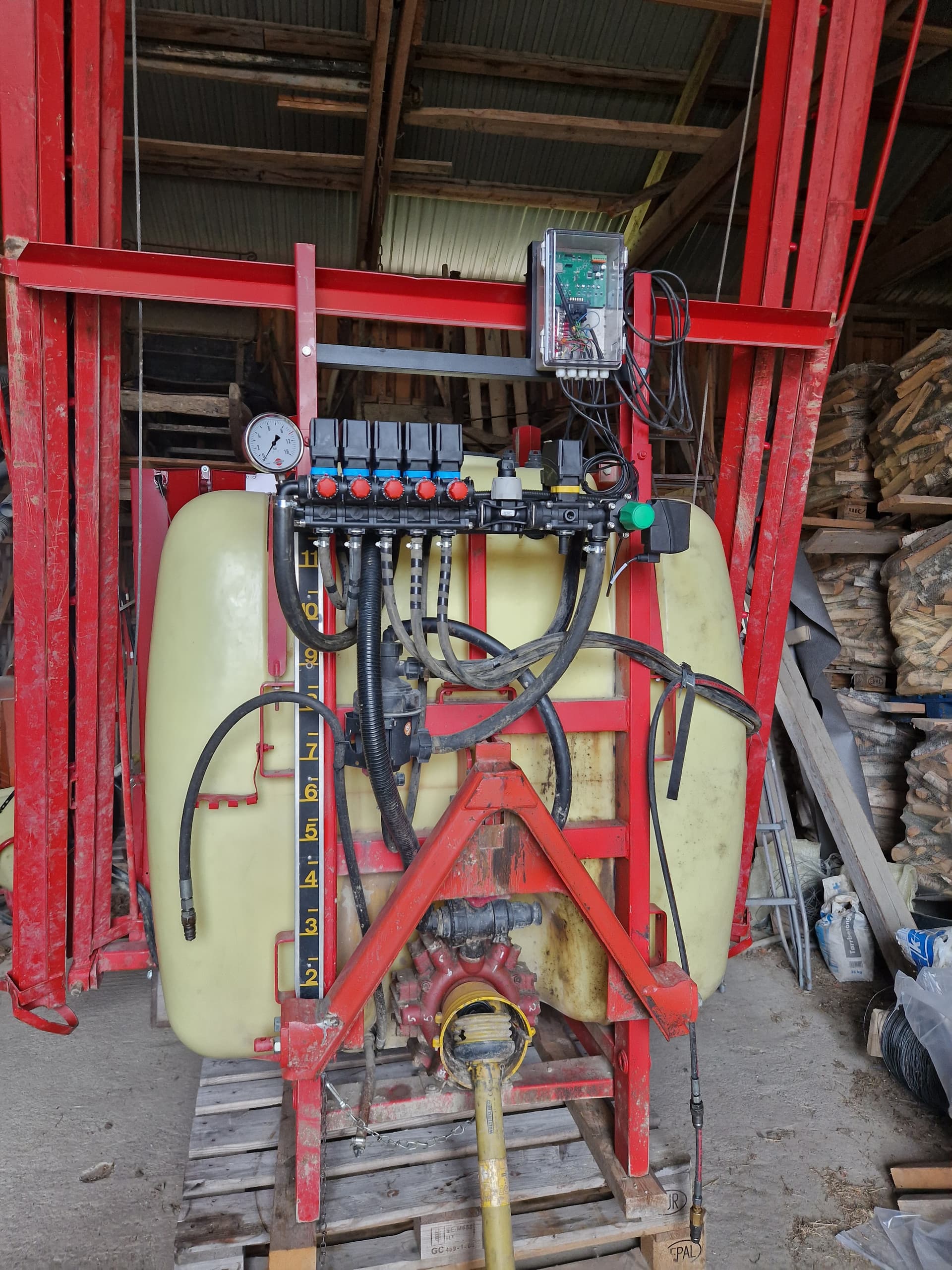

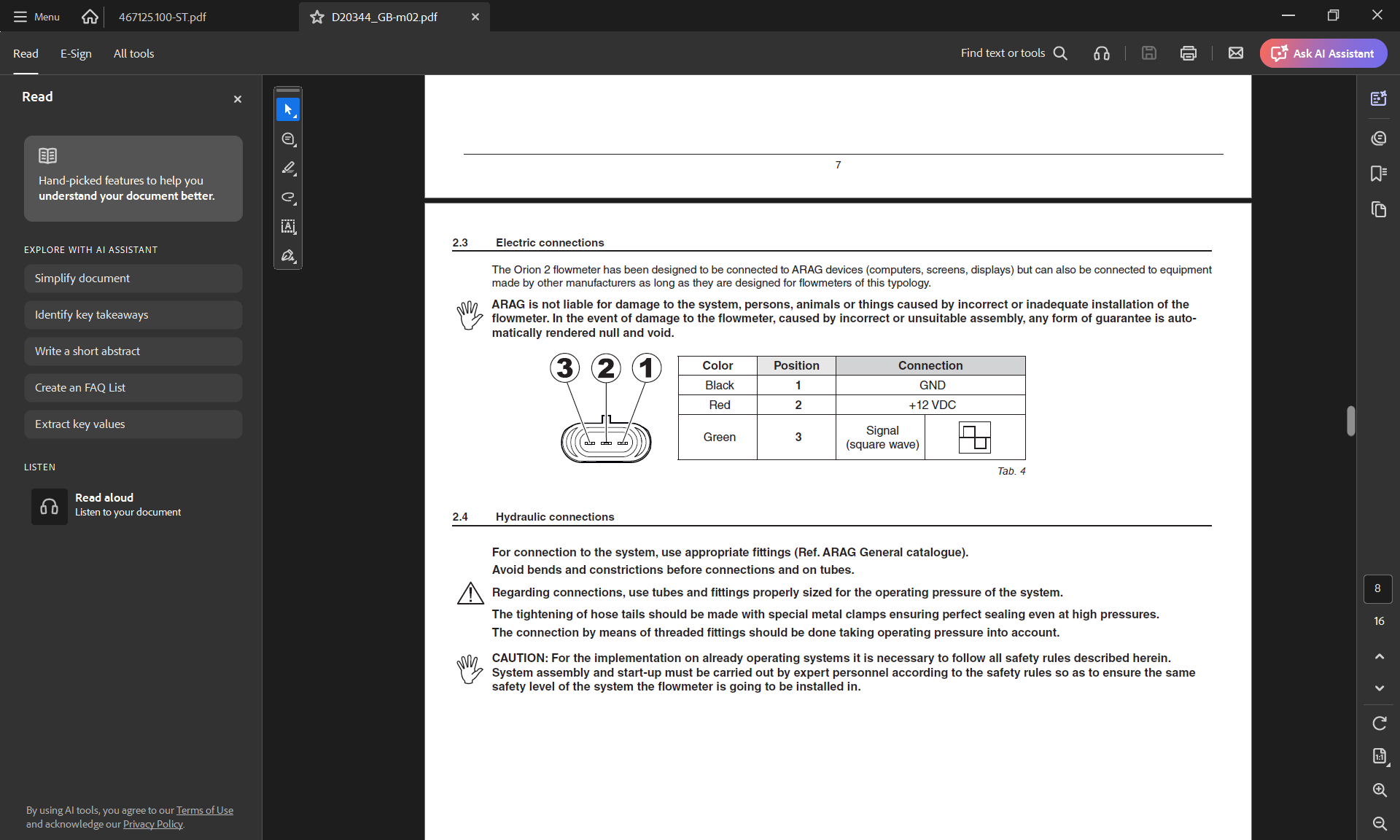

Also have a arag flowmeter 250pulses, anyone know how that should be connected to the RC11-2 board?
The rate control valve looks to be using 5v + - to regulate (measured when manually regulating it with the bravo 180s , how does this connect up to the RC11-2?
I’am using an RC15 board on my arag valves, no need for motorcontroler since its on the board.
With RC11-2 you also need to build an H-bridge with relays to control the valves because its only have 8 relays onboard. No need for that on RC15 because its have 7 dual motorcontrolers for section control + 2 for flow
Nice! So the easy way will be to go for a RC15 instead i see
The ratecontrol valve that you have does that use 5v + - to regulate? I see that it is a few different arag valves.

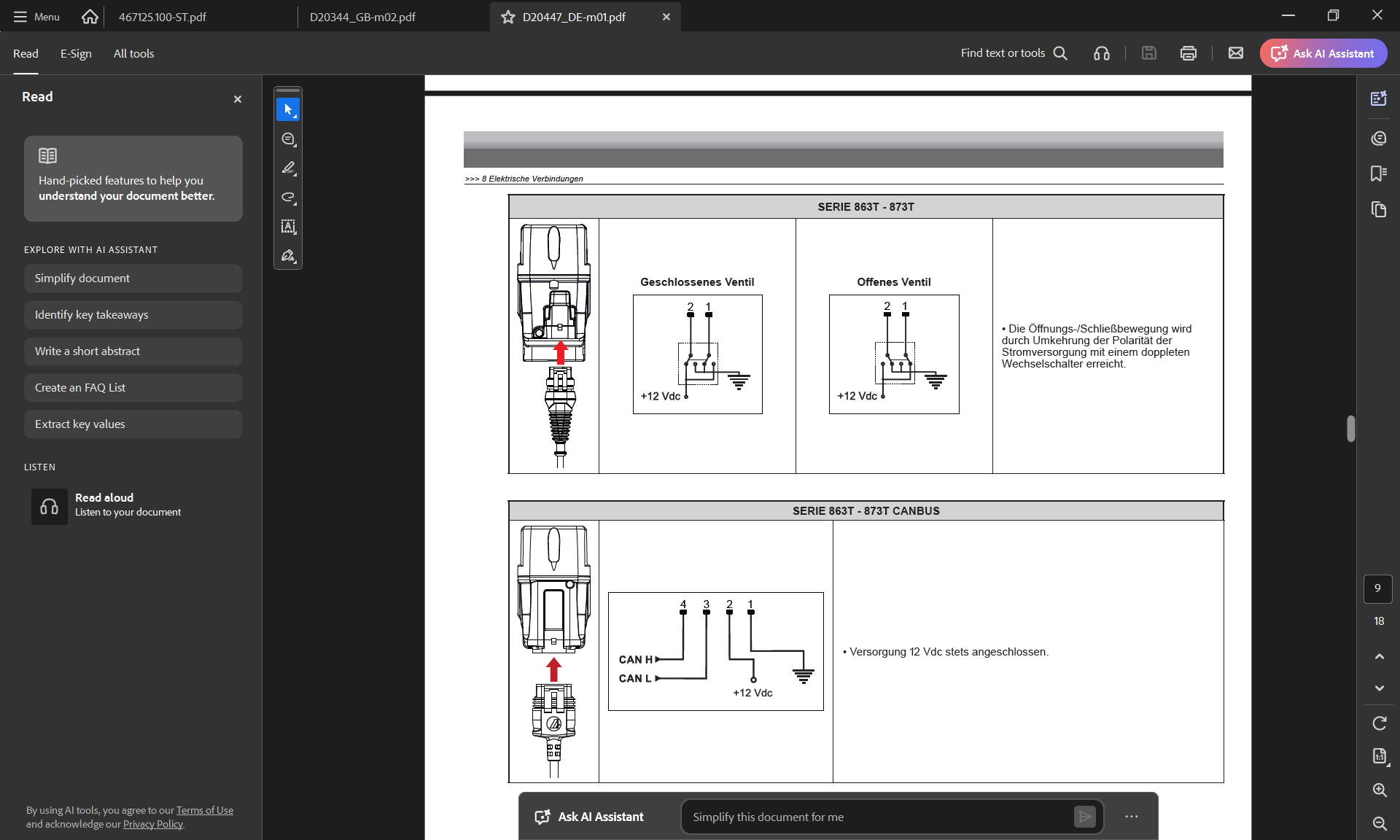

Yes, i mean the valve it self. I measured on mine when i regulated it manualy with the 180s, looks to be +5v one direction, and switch over the same as the other valves to go the other way.
How is yours regulated?
Edit: I see it must be 12v valve, maybe i just measure 5v because of the way it is controlled? PWM?
