SK21 Rate controller isuues

Operations/Getting Started
1

I am currently attempting to use the rate control app w/RC8. I am attempting to control a pump with a hydraulic motor. I was running as a motor last year. I have updated both software and firmware, including AOG. I cannot seem to get a response from the valve no matter what I do. I can hit the MA or MB buttons on the cytron and it will respond. I am connected to the module, and am getting good readings from the flowmeter. What could I be doing wrong?

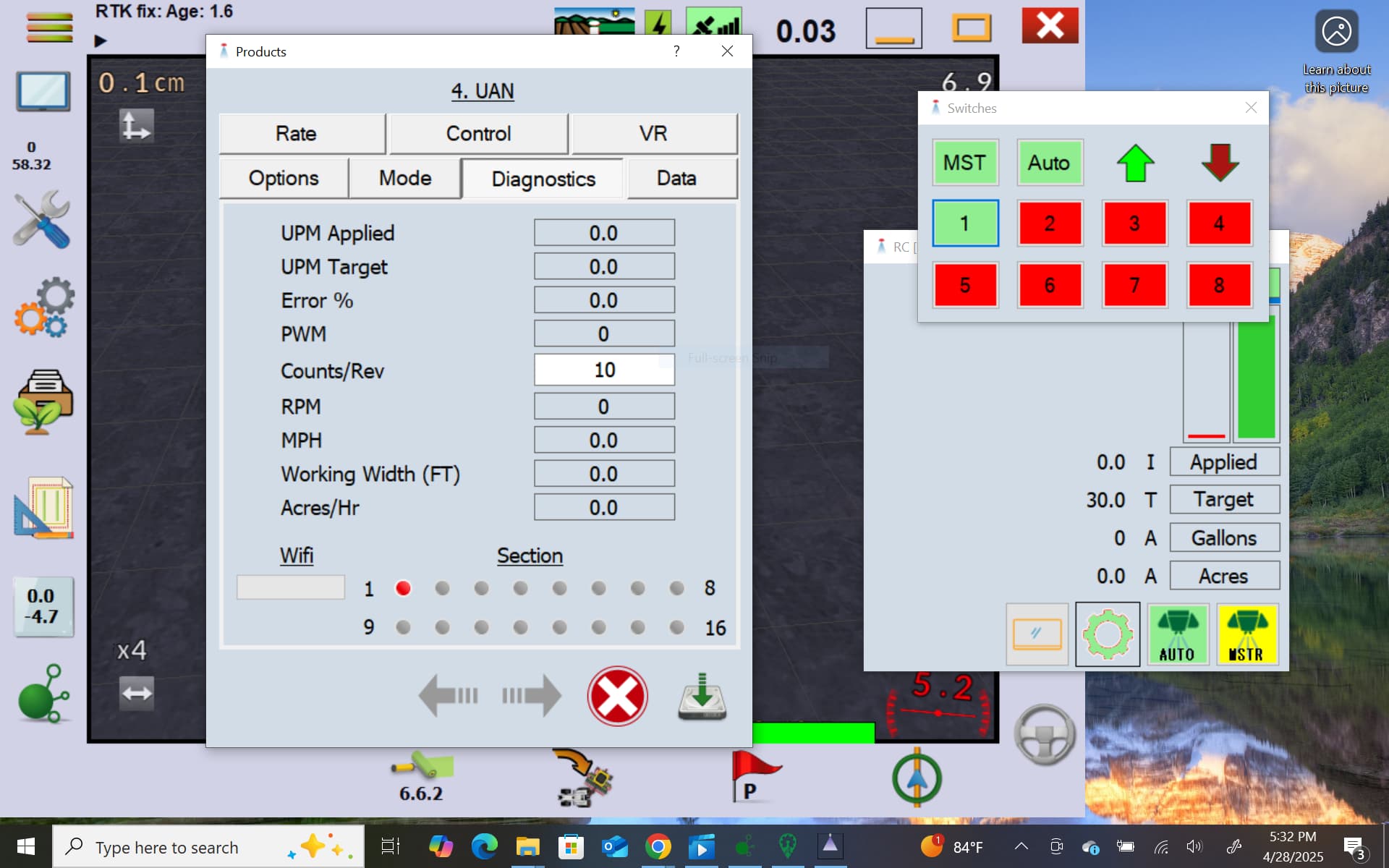

rate capture.PNG
rate capture.PNG1920×1200 173 KB

Should the section light on the left be green? I don’t need section control so should I run it as 1 thity foot section?

2

In auto mode the valve will not adjust unless you are moving. The working width is 0 so there will be nothing applied.

3

Thank you! I figured it was something simple. Does the RC app pull working width from AOG or is it set in section control?

4

I can’t seem to bet the width to show up. My tool width is set to 30 in AOG and I have 1 section @ 30’ in the RC app.

I have the rate set at 30 gallons, I am not sure why it isn’t showing either. Did I miss something?

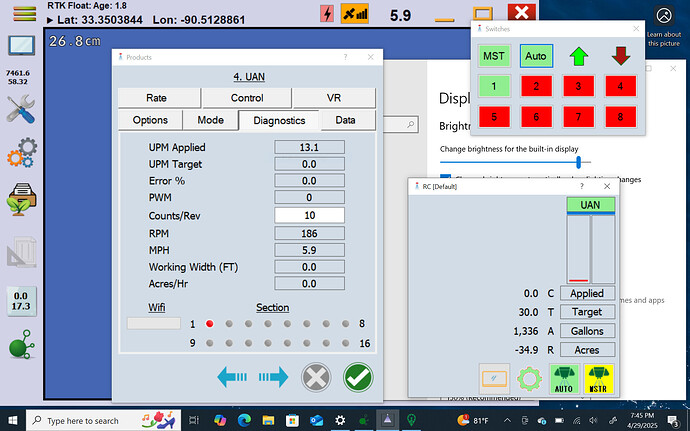

abc.PNG1920×1200 340 KB

5

How are your relays set up?

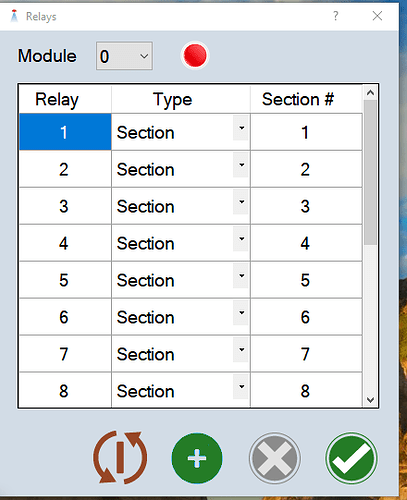

Capture
Capture441×541 30 KB

6

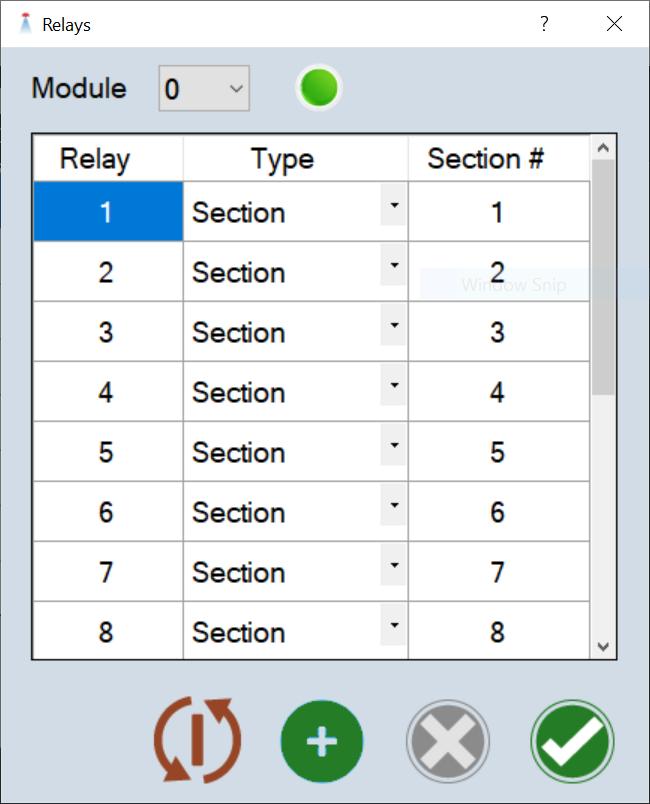

relay control
relay control650×804 67.6 KB

This is what it shows currently. I don’t actually have any relays in the system.
