Small Hydraulic and Keya PCB

Hardware PCB
1

Hello,

Here is my design.

The pcb works for Hydraulic and Keya motor with WAS. No need for relay on lockout valves. Direct connect to lock valves.

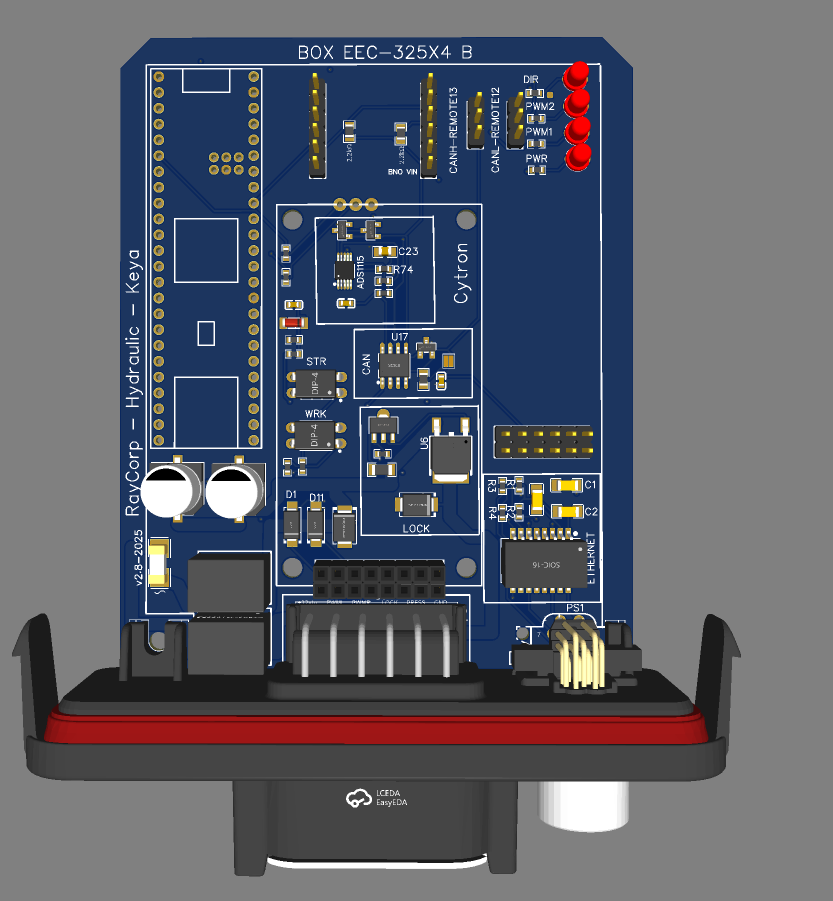

PCBSmall
PCBSmall833Ă—901 71.9 KB

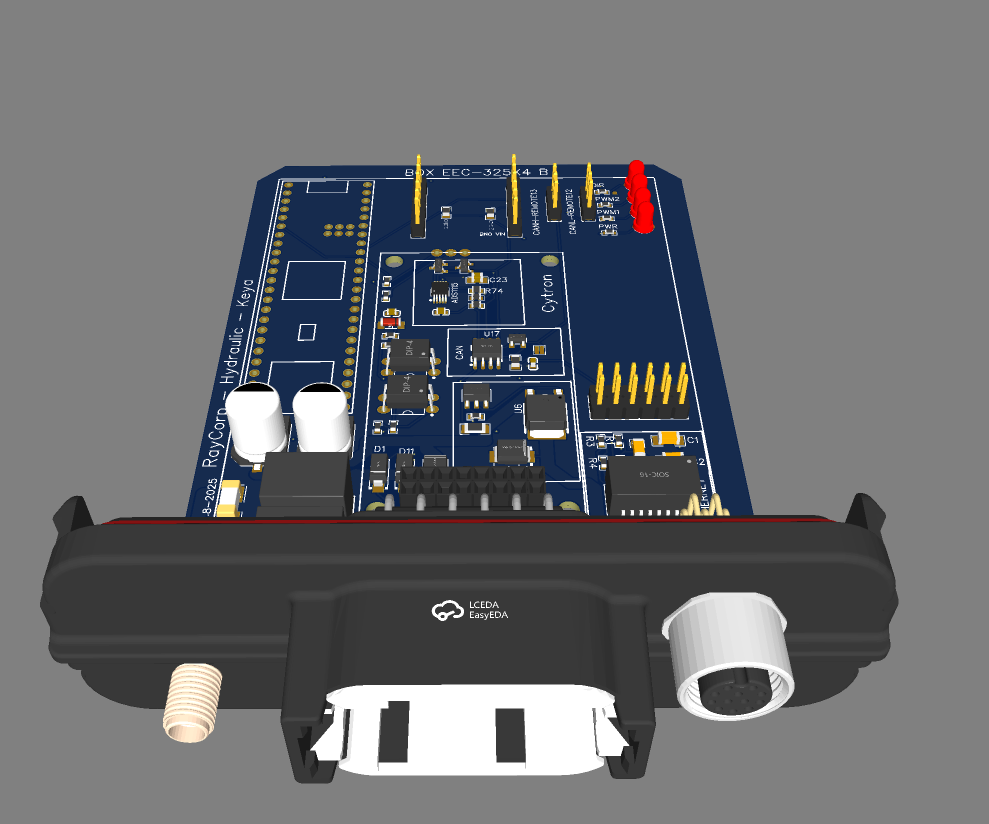

PCBSmall1
PCBSmall1989Ă—824 87.9 KB

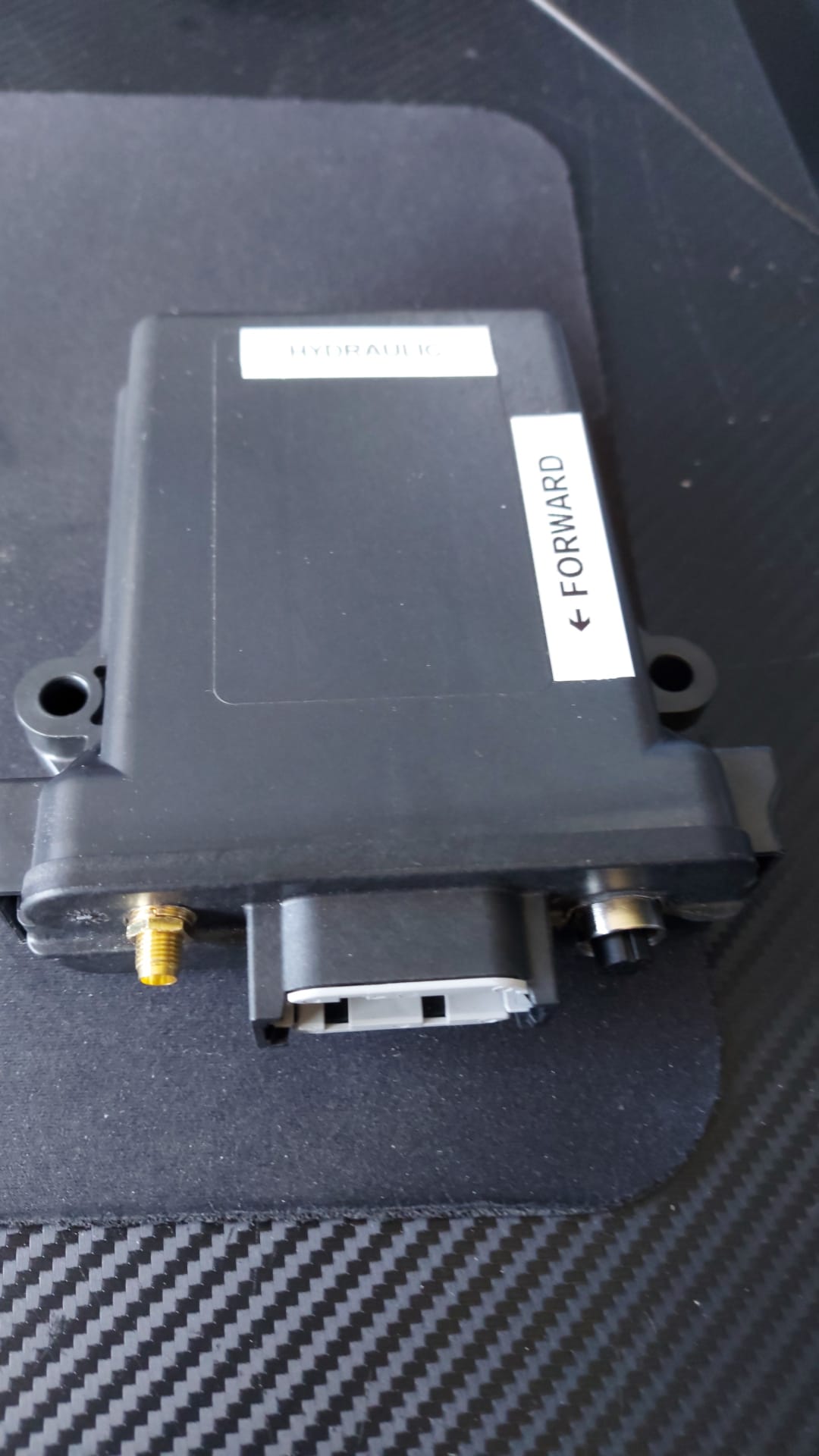

IMG-20250410-WA0010
IMG-20250410-WA00101080Ă—1920 123 KB

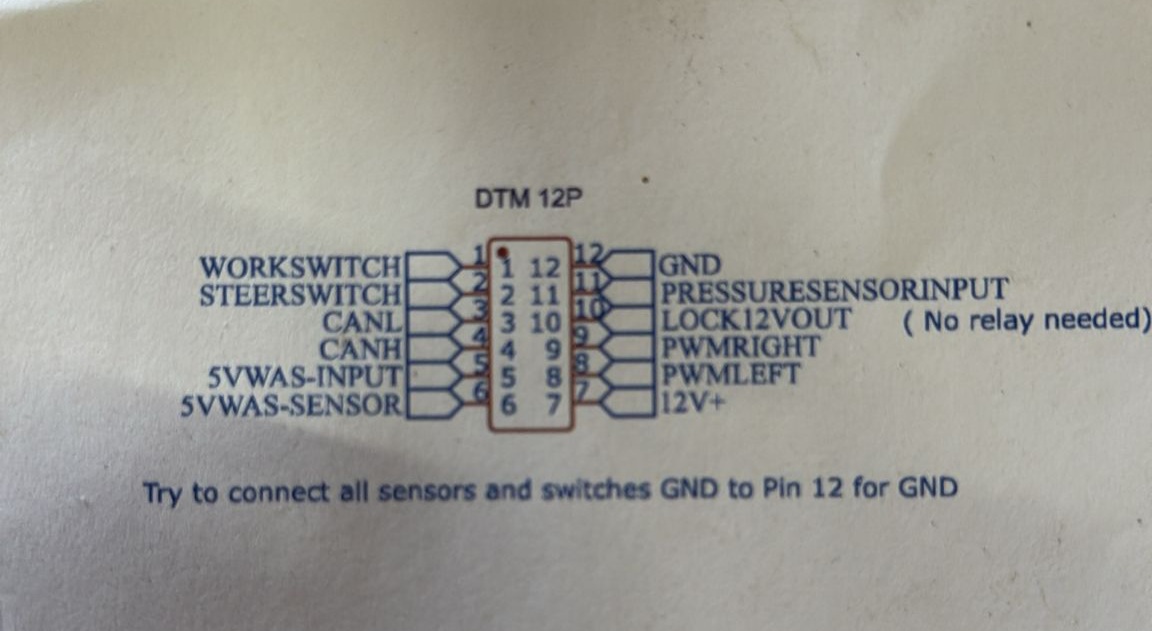

IMG-20250429-WA0017
IMG-20250429-WA00171152Ă—2048 239 KB

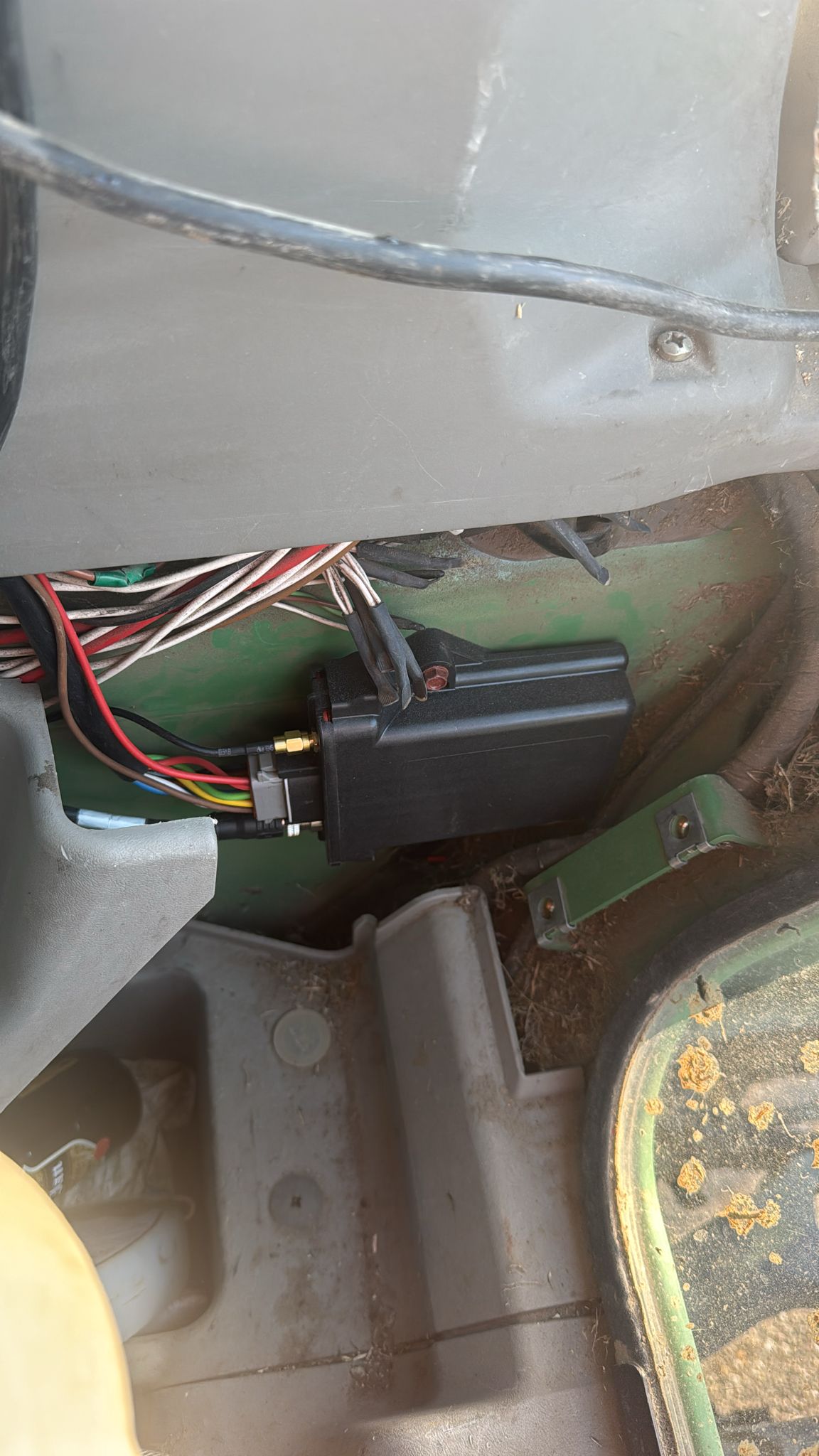

IMG-20250523-WA0007
IMG-20250523-WA00071152Ă—631 126 KB

8 Likes
2

Would it work with a Wass less version for the keya motor?

3

Do you need some specific on it for keya wasless?

4

Now that you mention it I don’t actually think so, its a nice size and doesn’t have all of the “unnecessary” stuff
