UDP Machine Hyd Down

[RollingHills]

I have been working on my machine board and have it mostly together but I am yet to get the hyd Down to work. Using UDP with a nano to control sections and hyd up/down. I have tried a few different outputs on the nano and changes to the code but no different. I get the proper Up function when crossing the headland but never Down? Only other odd thing it always shows save and send anytime I open the machine board setting even if I have yet to change.

//Machine Control - Brian Tee - Cut and paste from everywhere


//-----------------------------------------------------------------------------------------------
// Change this number to reset and reload default parameters To EEPROM
#define EEP_Ident 0x5425

//the default network address
struct ConfigIP {
    uint8_t ipOne = 192;
    uint8_t ipTwo = 168;
    uint8_t ipThree = 5;
};  ConfigIP networkAddress;   //3 bytes
//-----------------------------------------------------------------------------------------------

#include <EEPROM.h>
#include <Wire.h>
#include "EtherCard_AOG.h"
#include <IPAddress.h>

// ethernet interface ip address
static uint8_t myip[] = { 0,0,0,123 };

// gateway ip address
static uint8_t gwip[] = { 0,0,0,1 };

//DNS- you just need one anyway
static uint8_t myDNS[] = { 8,8,8,8 };

//mask
static uint8_t mask[] = { 255,255,255,0 };

//this is port of this autosteer module
uint16_t portMy = 5123;

//sending back to where and which port
static uint8_t ipDestination[] = { 0,0,0,255 };
uint16_t portDestination = 9999; //AOG port that listens

// ethernet mac address - must be unique on your network
static uint8_t mymac[] = { 0x00,0x00,0x56,0x00,0x00,0x7B };

uint8_t Ethernet::buffer[200]; // udp send and receive buffer

//Variables for config - 0 is false
struct Config {

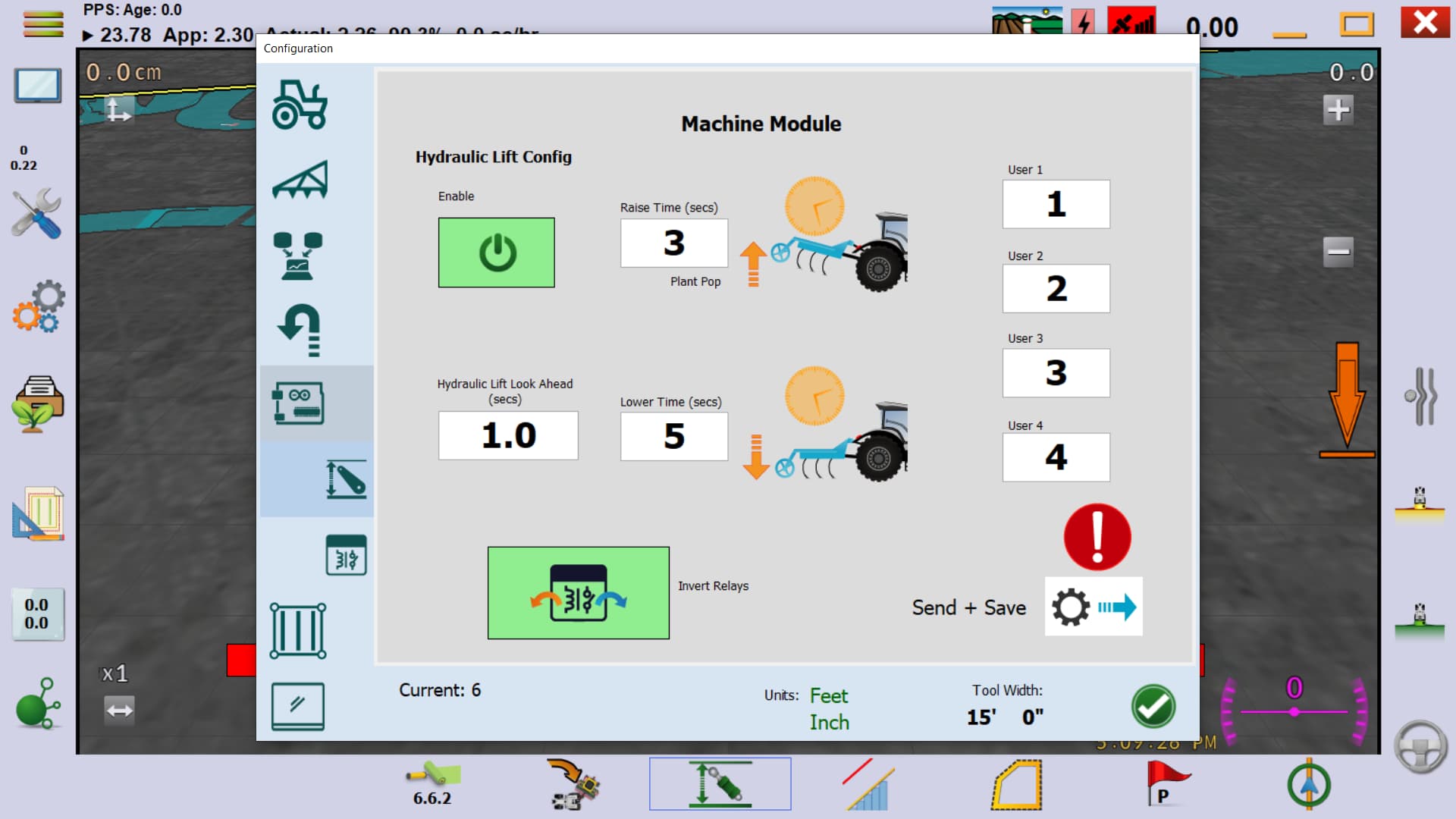

    uint8_t raiseTime = 2;
    uint8_t lowerTime = 4;
    uint8_t enableToolLift = 0;
    uint8_t isRelayActiveHigh = 0; //if zero, active low (default)

    uint8_t user1 = 0; //user defined values set in machine tab
    uint8_t user2 = 0;
    uint8_t user3 = 0;
    uint8_t user4 = 0;

};  Config aogConfig;   //4 bytes

//Program counter reset
void(*resetFunc) (void) = 0;

//ethercard 10,11,12,13 Nano = 10 depending how CS of ENC28J60 is Connected
#define CS_Pin 10

/*
* Functions as below assigned to pins
0: -
1 thru 16: Section 1,Section 2,Section 3,Section 4,Section 5,Section 6,Section 7,Section 8,
            Section 9, Section 10, Section 11, Section 12, Section 13, Section 14, Section 15, Section 16,

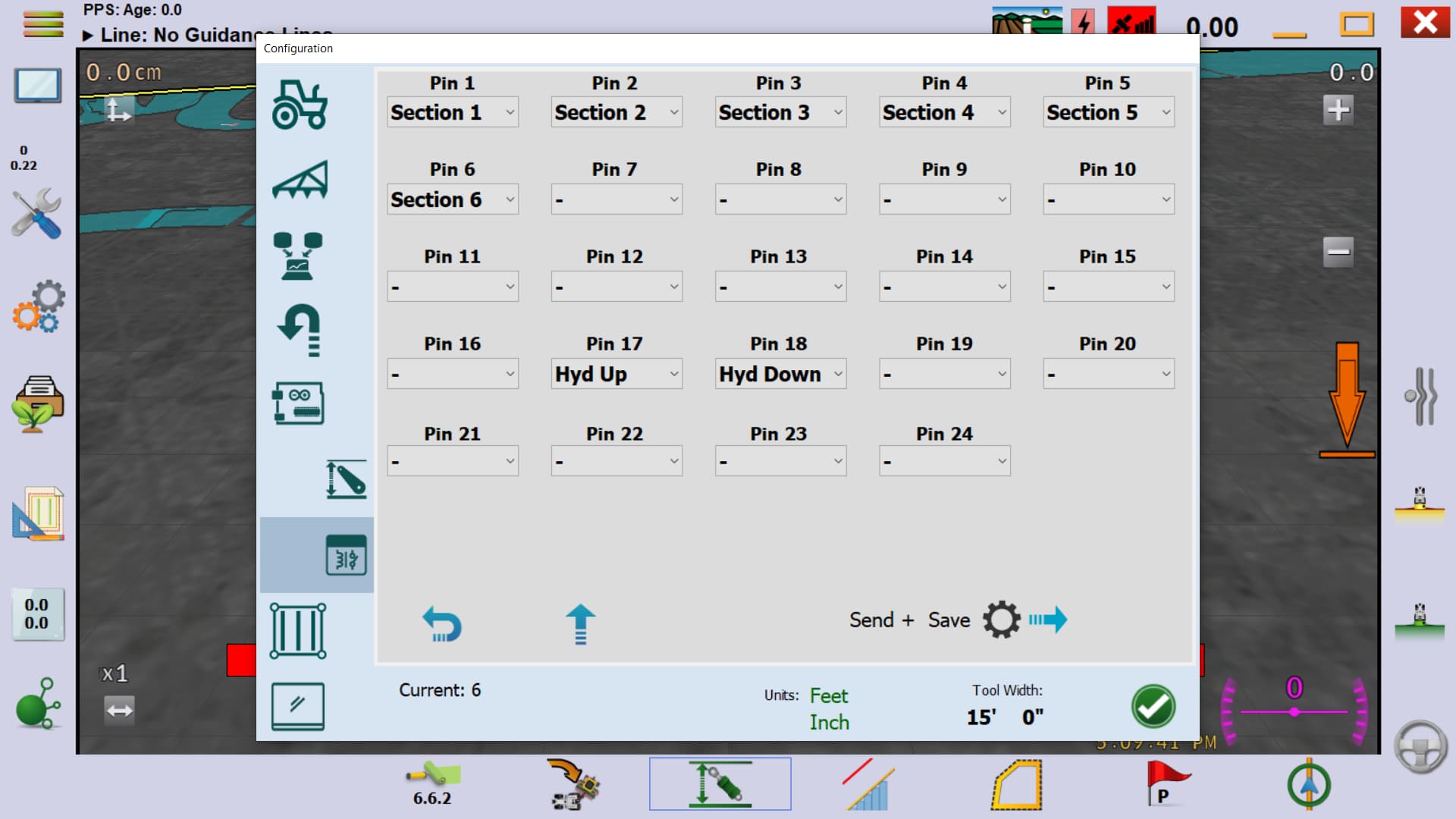

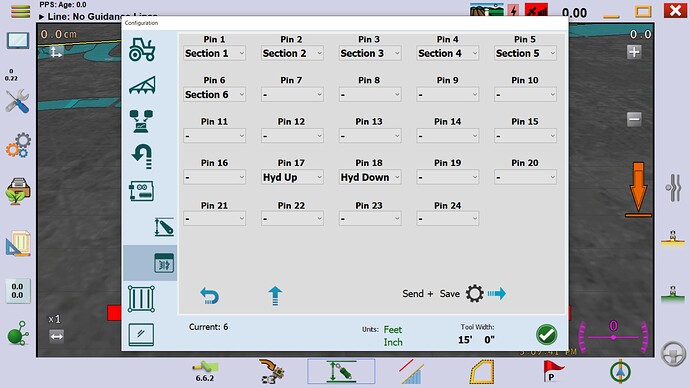

17,18    Hyd Up, Hyd Down,
19 Tramline,
20: Geo Stop
21,22,23 - unused so far*/
uint8_t pin[] = { 1,2,3,4,5,6,0,0,0,0,0,0,0,0,0,0,17,18,0,0,0,0,0,0 };

//read value from Machine data and set 1 or zero according to list
uint8_t relayState[] = { 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 };

//hello from AgIO
uint8_t helloFromMachine[] = { 128, 129, 123, 123, 5, 0, 0, 0, 0, 0, 71 };

const uint8_t LOOP_TIME = 200; //5hz
uint32_t lastTime = LOOP_TIME;
uint32_t currentTime = LOOP_TIME;
uint32_t fifthTime = 0;
uint16_t count = 0;

//Comm checks
uint8_t watchdogTimer = 20; //make sure we are talking to AOG
uint8_t serialResetTimer = 0; //if serial buffer is getting full, empty it

bool isRaise = false, isLower = false;

//Communication with AgOpenGPS
int16_t temp, EEread = 0;

//Parsing PGN
bool isPGNFound = false, isHeaderFound = false;
uint8_t pgn = 0, dataLength = 0, idx = 0;
int16_t tempHeader = 0;

//settings pgn
uint8_t PGN_237[] = { 0x80,0x81, 0x7f, 237, 8, 1, 2, 3, 4, 0,0,0,0, 0xCC };
int8_t PGN_237_Size = sizeof(PGN_237) - 1;

//The variables used for storage
uint8_t relayHi = 0, relayLo = 0, tramline = 0, uTurn = 0, hydLift = 0, geoStop = 0;
float gpsSpeed;
uint8_t raiseTimer = 0, lowerTimer = 0, lastTrigger = 0;


void setup()
{

    //set the baud rate
    Serial.begin(38400);
    //while (!Serial) { ; } // wait for serial port to connect. Needed for native USB

    EEPROM.get(0, EEread);              // read identifier

    if (EEread != EEP_Ident)   // check on first start and write EEPROM
    {
        EEPROM.put(0, EEP_Ident);
        EEPROM.put(6, aogConfig);
        EEPROM.put(20, pin);
        EEPROM.put(50, networkAddress);
    }
    else
    {
        EEPROM.get(6, aogConfig);
        EEPROM.get(20, pin);
        EEPROM.get(50, networkAddress);
    }

    if (ether.begin(sizeof Ethernet::buffer, mymac, CS_Pin) == 0)
        Serial.println(F("Failed to access Ethernet controller"));

    //grab the ip from EEPROM
    myip[0] = networkAddress.ipOne;
    myip[1] = networkAddress.ipTwo;
    myip[2] = networkAddress.ipThree;

    gwip[0] = networkAddress.ipOne;
    gwip[1] = networkAddress.ipTwo;
    gwip[2] = networkAddress.ipThree;

    ipDestination[0] = networkAddress.ipOne;
    ipDestination[1] = networkAddress.ipTwo;
    ipDestination[2] = networkAddress.ipThree;

    //set up connection
    ether.staticSetup(myip, gwip, myDNS, mask);
    ether.printIp("_IP_: ", ether.myip);
    ether.printIp("GWay: ", ether.gwip);
    ether.printIp("AgIO: ", ipDestination);

    //register to port 8888
    ether.udpServerListenOnPort(&udpSteerRecv, 8888);

    //set the pins to be outputs (pin numbers)
    pinMode(4, OUTPUT);
    pinMode(5, OUTPUT);
    pinMode(6, OUTPUT);
    pinMode(7, OUTPUT);
    pinMode(8, OUTPUT);
    pinMode(9, OUTPUT);
    pinMode(A0, OUTPUT);
    pinMode(3, OUTPUT);

    Serial.println("Setup complete, waiting for AgOpenGPS");

}

void loop()
{
    //Loop triggers every 200 msec and sends back gyro heading, and roll, steer angle etc

    currentTime = millis();

    if (currentTime - lastTime >= LOOP_TIME)
    {
        lastTime = currentTime;

        //If connection lost to AgOpenGPS, the watchdog will count up
        if (watchdogTimer++ > 250) watchdogTimer = 20;

        //clean out serial buffer to prevent buffer overflow
        if (serialResetTimer++ > 20)
        {
            while (Serial.available() > 0) Serial.read();
            serialResetTimer = 0;
        }

        if (watchdogTimer > 20)
        {
            if (aogConfig.isRelayActiveHigh) {
                relayLo = 255;
                relayHi = 255;
            }
            else {
                relayLo = 0;
                relayHi = 0;
            }
        }

        //hydraulic lift

        if (hydLift != lastTrigger && (hydLift == 1 || hydLift == 2))
        {
            lastTrigger = hydLift;
            lowerTimer = 0;
            raiseTimer = 0;

            //200 msec per frame so 5 per second
            switch (hydLift)
            {
                //lower
            case 1:
                lowerTimer = aogConfig.lowerTime * 5;
                break;

                //raise
            case 2:
                raiseTimer = aogConfig.raiseTime * 5;
                break;
            }
        }

        //countdown if not zero, make sure up only
        if (raiseTimer)
        {
            raiseTimer--;
            lowerTimer = 0;
        }
        if (lowerTimer) lowerTimer--;

        //if anything wrong, shut off hydraulics, reset last
        if ((hydLift != 1 && hydLift != 2) || watchdogTimer > 10) //|| gpsSpeed < 2)
        {
            lowerTimer = 0;
            raiseTimer = 0;
            lastTrigger = 0;
        }

        if (aogConfig.isRelayActiveHigh)
        {
            isLower = isRaise = false;
            if (lowerTimer) isLower = true;
            if (raiseTimer) isRaise = true;
        }
        else
        {
            isLower = isRaise = true;
            if (lowerTimer) isLower = false;
            if (raiseTimer) isRaise = false;
        }

        //section relays
        SetRelays();

        //checksum
        int16_t CK_A = 0;
        for (uint8_t i = 2; i < PGN_237_Size; i++)
        {
            CK_A = (CK_A + PGN_237[i]);
        }
        PGN_237[PGN_237_Size] = CK_A;

        //off to AOG
        ether.sendUdp(PGN_237, sizeof(PGN_237), portMy, ipDestination, portDestination);

    } //end of timed loop

    delay(1);

    //this must be called for ethercard functions to work. Calls udpSteerRecv() defined way below.
    ether.packetLoop(ether.packetReceive());
}

//callback when received packets
void udpSteerRecv(uint16_t dest_port, uint8_t src_ip[IP_LEN], uint16_t src_port, uint8_t* udpData, uint16_t len)
{
/* IPAddress src(src_ip[0],src_ip[1],src_ip[2],src_ip[3]);
Serial.print(“dPort:”); Serial.print(dest_port);
Serial.print(" sPort: “); Serial.print(src_port);
Serial.print(” sIP: “); ether.printIp(src_ip); Serial.println(” end");

    //for (int16_t i = 0; i < len; i++) {
    //Serial.print(udpData[i],HEX); Serial.print("\t"); } Serial.println(len);
    */

    if (udpData[0] == 0x80 && udpData[1] == 0x81 && udpData[2] == 0x7F) //Data
    {

        if (udpData[3] == 239)  //machine data
        {
            uTurn = udpData[5];
            gpsSpeed = (float)udpData[6];//actual speed times 4, single uint8_t

            hydLift = udpData[7];
            tramline = udpData[8];  //bit 0 is right bit 1 is left

            relayLo = udpData[11];          // read relay control from AgOpenGPS
            relayHi = udpData[12];

            if (aogConfig.isRelayActiveHigh)
            {
                tramline = 255 - tramline;
                relayLo = 255 - relayLo;
                relayHi = 255 - relayHi;
            }

            //Bit 13 CRC

            //reset watchdog
            watchdogTimer = 0;
        }

        else if (udpData[3] == 200) // Hello from AgIO
        {
            if (udpData[7] == 1)
            {
                relayLo -= 255;
                relayHi -= 255;
                watchdogTimer = 0;
            }

            helloFromMachine[5] = relayLo;
            helloFromMachine[6] = relayHi;

            ether.sendUdp(helloFromMachine, sizeof(helloFromMachine), portMy, ipDestination, portDestination);
        }


        else if (udpData[3] == 238)
        {
            aogConfig.raiseTime = udpData[5];
            aogConfig.lowerTime = udpData[6];
            aogConfig.enableToolLift = udpData[7];

            //set1
            uint8_t sett = udpData[8];  //setting0
            if (bitRead(sett, 0)) aogConfig.isRelayActiveHigh = 1; else aogConfig.isRelayActiveHigh = 0;

            aogConfig.user1 = udpData[9];
            aogConfig.user2 = udpData[10];
            aogConfig.user3 = udpData[11];
            aogConfig.user4 = udpData[12];

            //crc

            //save in EEPROM and restart
            EEPROM.put(6, aogConfig);
            //resetFunc();
        }

        else if (udpData[3] == 201)
        {
            //make really sure this is the subnet pgn
            if (udpData[4] == 5 && udpData[5] == 201 && udpData[6] == 201)
            {
                networkAddress.ipOne = udpData[7];
                networkAddress.ipTwo = udpData[8];
                networkAddress.ipThree = udpData[9];

                //save in EEPROM and restart
                EEPROM.put(50, networkAddress);
                resetFunc();
            }
        }

        //Scan Reply
        else if (udpData[3] == 202)
        {
            //make really sure this is the subnet pgn
            if (udpData[4] == 3 && udpData[5] == 202 && udpData[6] == 202)
            {
                uint8_t scanReply[] = { 128, 129, 123, 203, 7,
                    networkAddress.ipOne, networkAddress.ipTwo, networkAddress.ipThree, 123,
                    src_ip[0], src_ip[1], src_ip[2], 23   };

                //checksum
                int16_t CK_A = 0;
                for (uint8_t i = 2; i < sizeof(scanReply) - 1; i++)
                {
                    CK_A = (CK_A + scanReply[i]);
                }
                scanReply[sizeof(scanReply)-1] = CK_A;

                static uint8_t ipDest[] = { 255,255,255,255 };
                uint16_t portDest = 9999; //AOG port that listens

                //off to AOG
                ether.sendUdp(scanReply, sizeof(scanReply), portMy, ipDest, portDest);
            }
        }

        else if (udpData[3] == 236) //EC Relay Pin Settings
        {
            for (uint8_t i = 0; i < 24; i++)
            {
                pin[i] = udpData[i + 5];
            }

            //save in EEPROM and restart
            EEPROM.put(20, pin);
        }
    }
}

void SetRelays(void)
{
    //pin, rate, duration  130 pp meter, 3.6 kmh = 1 m/sec or gpsSpeed * 130/3.6 or gpsSpeed * 36.1111
    //gpsSpeed is 10x actual speed so 3.61111
    gpsSpeed *= 3.61111;
    //tone(13, gpsSpeed);

    //Load the current pgn relay state - Sections
    for (uint8_t i = 0; i < 8; i++)
    {
        relayState[i] = bitRead(relayLo, i);
    }

    for (uint8_t i = 0; i < 8; i++)
    {
        relayState[i + 8] = bitRead(relayHi, i);
    }

    // Hydraulics
    relayState[16] = isLower;
    relayState[17] = isRaise;

    //Tram
    relayState[18] = bitRead(tramline, 0); //right
    relayState[19] = bitRead(tramline, 1); //left

    //GeoStop
    relayState[20] = (geoStop == 0) ? 0 : 1;

    if (pin[0]) digitalWrite(4, relayState[pin[0] - 1]);
    if (pin[1]) digitalWrite(5, relayState[pin[1] - 1]);
    if (pin[2]) digitalWrite(6, relayState[pin[2] - 1]);
    if (pin[3]) digitalWrite(7, relayState[pin[3] - 1]);

    if (pin[4]) digitalWrite(8, relayState[pin[4] - 1]);
    if (pin[5]) digitalWrite(9, relayState[pin[5] - 1]);

    //if (pin[6]) digitalWrite(10, relayState[pin[6]-1]);
    //if (pin[7]) digitalWrite(11, relayState[pin[7]-1]);

    //if (pin[8]) digitalWrite(12, relayState[pin[8]-1]);
    //if (pin[9]) digitalWrite(4, relayState[pin[9]-1]);

    //if (pin[10]) digitalWrite(IO#Here, relayState[pin[10]-1]);
    //if (pin[11]) digitalWrite(IO#Here, relayState[pin[11]-1]);
    //if (pin[12]) digitalWrite(IO#Here, relayState[pin[12]-1]);
    //if (pin[13]) digitalWrite(IO#Here, relayState[pin[13]-1]);
    //if (pin[14]) digitalWrite(IO#Here, relayState[pin[14]-1]);
    //if (pin[15]) digitalWrite(IO#Here, relayState[pin[15]-1]);
    //if (pin[16]) digitalWrite(IO#Here, relayState[pin[16]-1]);

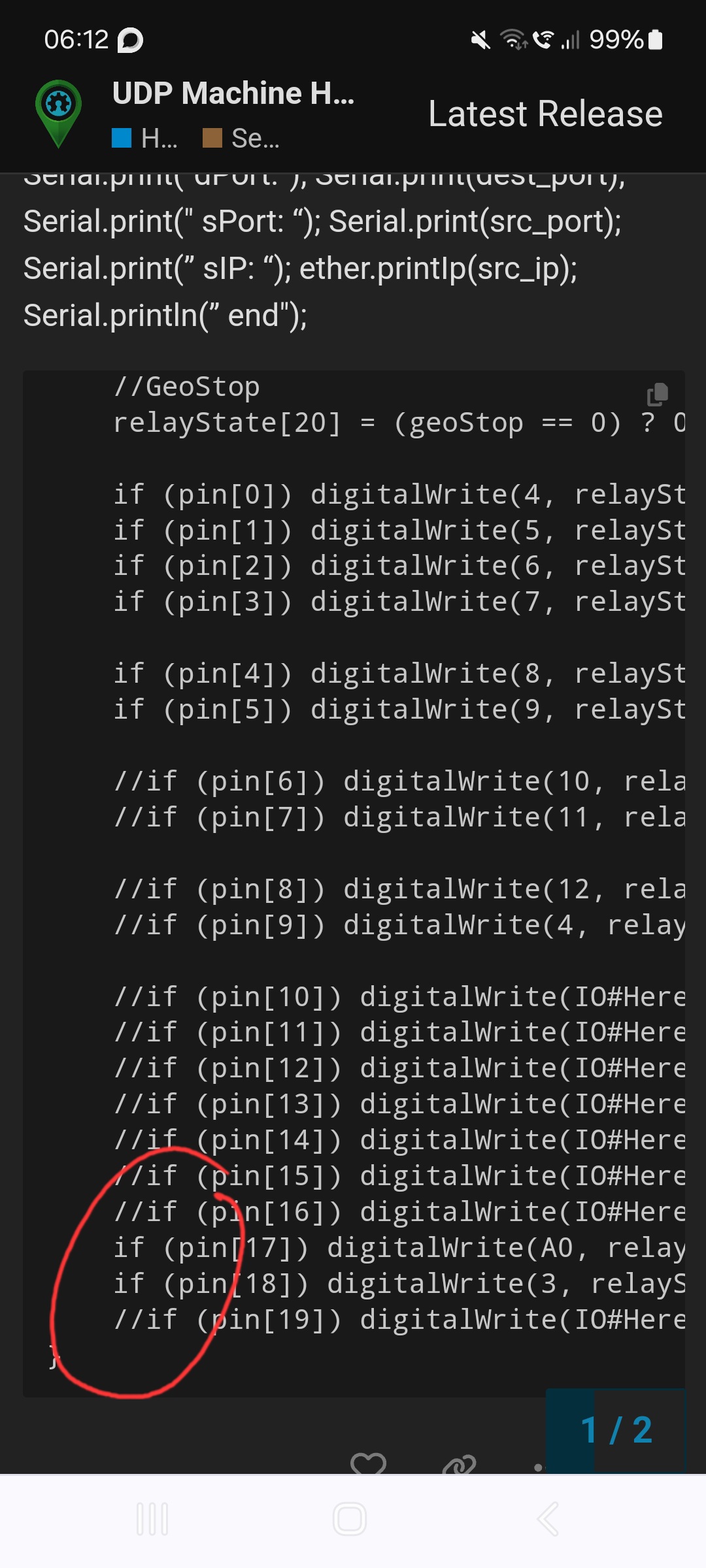

    if (pin[17]) digitalWrite(A0, relayState[pin[17]-1]);
    if (pin[18]) digitalWrite(3, relayState[pin[18]-1]);
    //if (pin[19]) digitalWrite(IO#Here, relayState[pin[19]-1]);
}

[del_boy]

Are you sure pin 17 and 18 are on the nano?
I had to use pins a0 and a1 to get my full 12 section control pins,
I then had to alter the code for them a0 and a1 pins to 'output ’
Can you not use pins 7 and 8 instead?
Ive not used machine lift myself, are you getting the big arror on the screen when its turned on?
Is your section control working ok?

[del_boy]

This address line possibly needs // adding to the lines . I also had to do this

[RollingHills]

Using d4-9 for my 6 section control, works as it should. I initially tried a0 ans a1. Set as outputs in code as well. No errors in aog besides the asking to send and save every time i open setting, if i do send again no change. I do get the up function on a0, just no down no matter what output i confiue in the code.

My limited understanding is to remove the // to make the line active instead of a notation.

[del_boy]

Try using pins d10 and d11 on the nano see if that changes anything.
I had to enable pins a0 and a1 and definitely had to add // to both lines.
But i was using machine usb.
Also worth noting that your ‘invert relays’ box is highlighted.
Not all pins on the nano with invert there voltage and certainly pins a0 and a1 wont for sure. Pretty sure of the 12 pins on the nano im using only 8 will invert

[RollingHills]

I will try some of the other pins that i are currently working. Using UDP i think d2 , d10-13 are used by the ethernet adapter.

I do want the invtered relays as my sections are actually planter row shutoffs, so i was working with that in mind for the hyd lift too. But i never get any output signal for down no matter what yet. I do get the arrow on screen and audible sounds.

[del_boy]

If you leave the inverted option as standard and swap the nc and no wires on the relay then move the jumpers from hi to low that should work perhaps
Mine is currently set if anything fails it wont switch on which isn’t ideal, i couldn’t get all nano pins to invert.
I need to swap my nc no wires around myself so it fail safes to on

[RollingHills]

FIXED:

From the pin set up at beginning of machine UDP 5.6 .ino

17,18    Hyd Up, Hyd Down,

Except from RelayState function

    // Hydraulics
    relayState[16] = isLower;
    relayState[17] = isRaise;

So if I use pin16 and set the IF function to the Nano output pin I want for down it works!

The planter section control is powered to disconnect the units so using the NO with inverted relays If a realy or somehitng fails I just keep planting like the old days. Also the relay module I got doesn’t have the high or low trigger jumpers.

Thanks for the help.
