Hello,
We said before we will sell Euler hydraulics valves, but we also said we are in contact with another company for a nice solution.
Well we are proud to say that we have found a perfect European company called Hydac (Known for quality hydraulic manifolds, and they produce all the AgLeader hydraulic manifolds) they can deliver what we need. A high quality all-in-one valve for a reasonable price.
Standard will be a Load Sensing universal manifold. But by changing 2 cartridge valves, you can change it to a 60L open center valve.
So we will have 5 types of valves in different price ranges.
- 30L Open Center Euler = € 860 Euro
- 60L Open Center Euler = €1125 Euro
- 30L Load Sense Euler = € 860Euro
- 60L Load Sense Euler = €1125 Euro
- All-in-one 60L Static/Dynamic Load Sense / Open Center €1200 Euro
All valves will have a 5Volt pressure Sensor.
I will post more info and technical data one of these days.
Keep your eyes on our webshop!
If you need a quotation please contact us at info@aogrtk.nl
When you’re interested, just let me know. We will order a batch of these valves in 2 weeks. How many depends on how many are interested.
Regards,
Team AogRtk
5 Likes

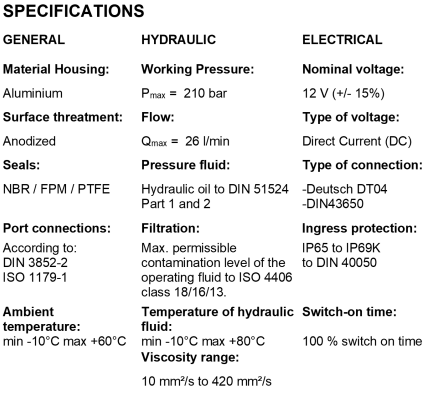

More info about our Hydac AgOpenGPS valve.

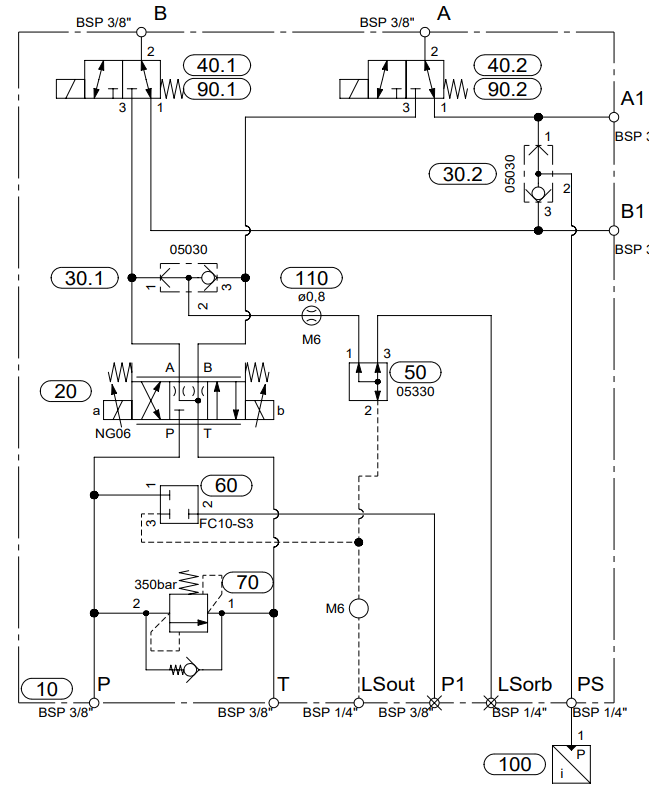

Here is the diagram for the hydraulic fans among us.

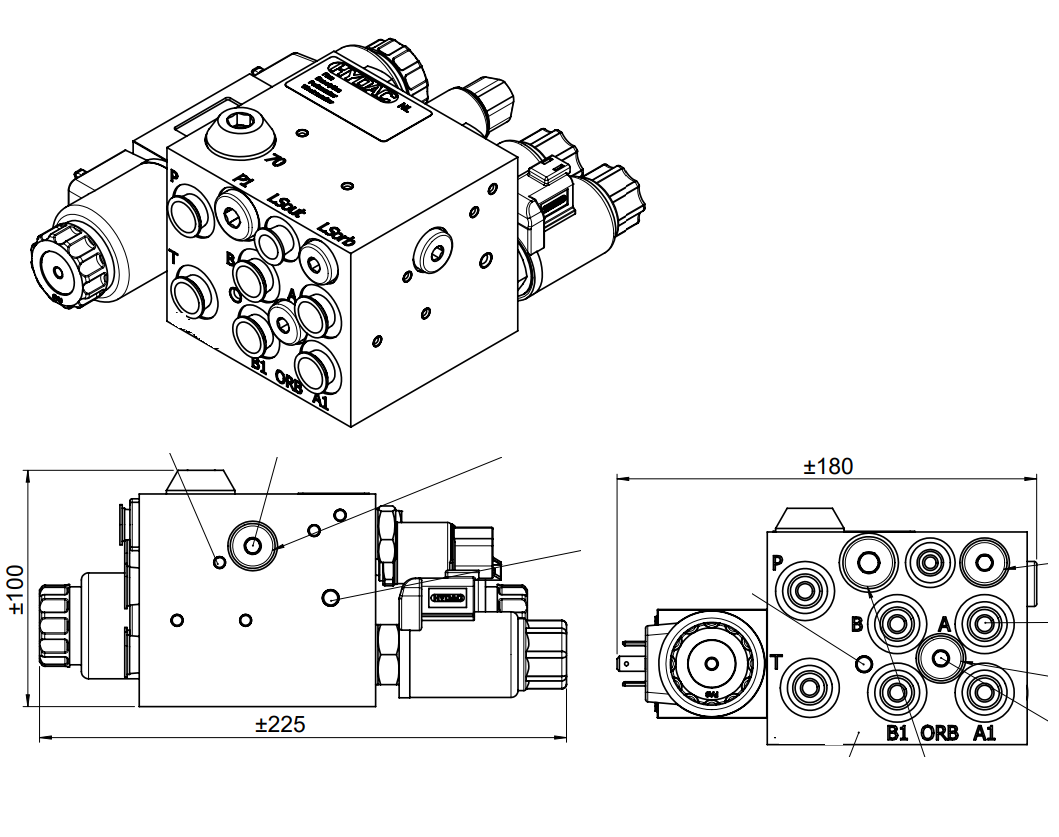

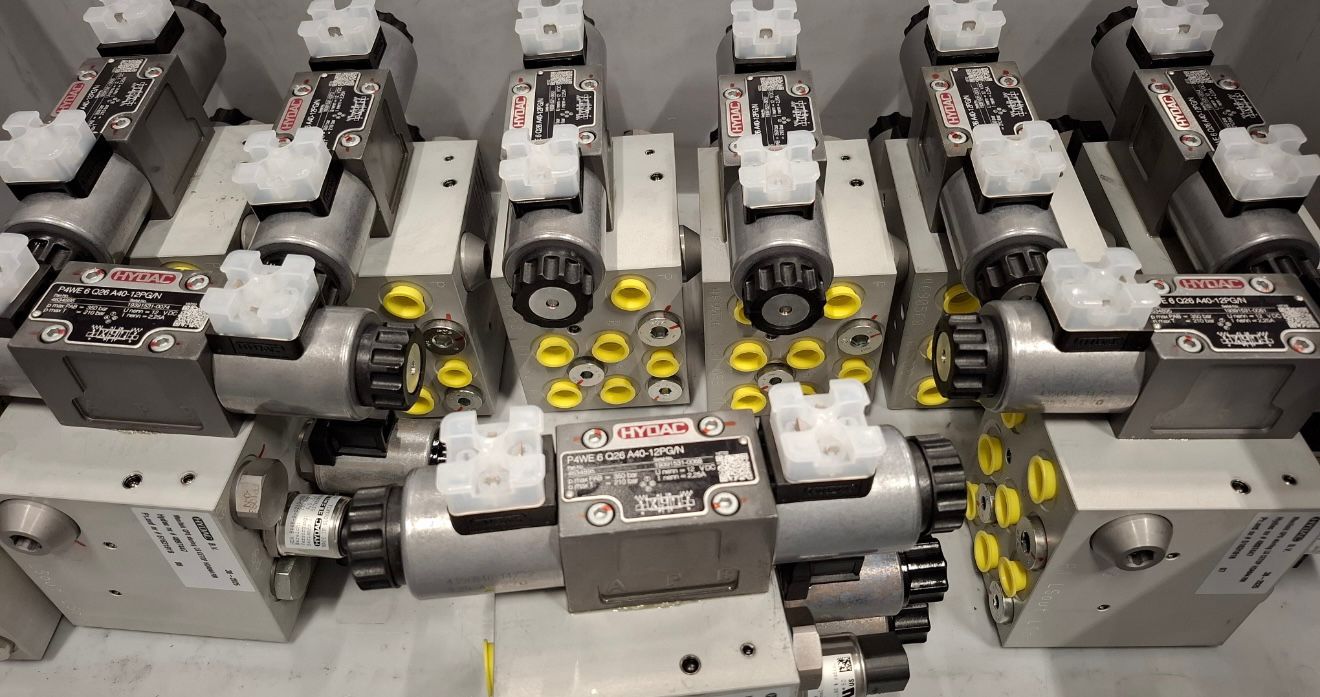

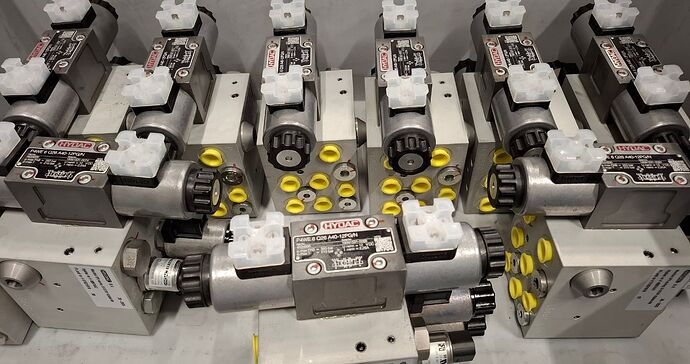

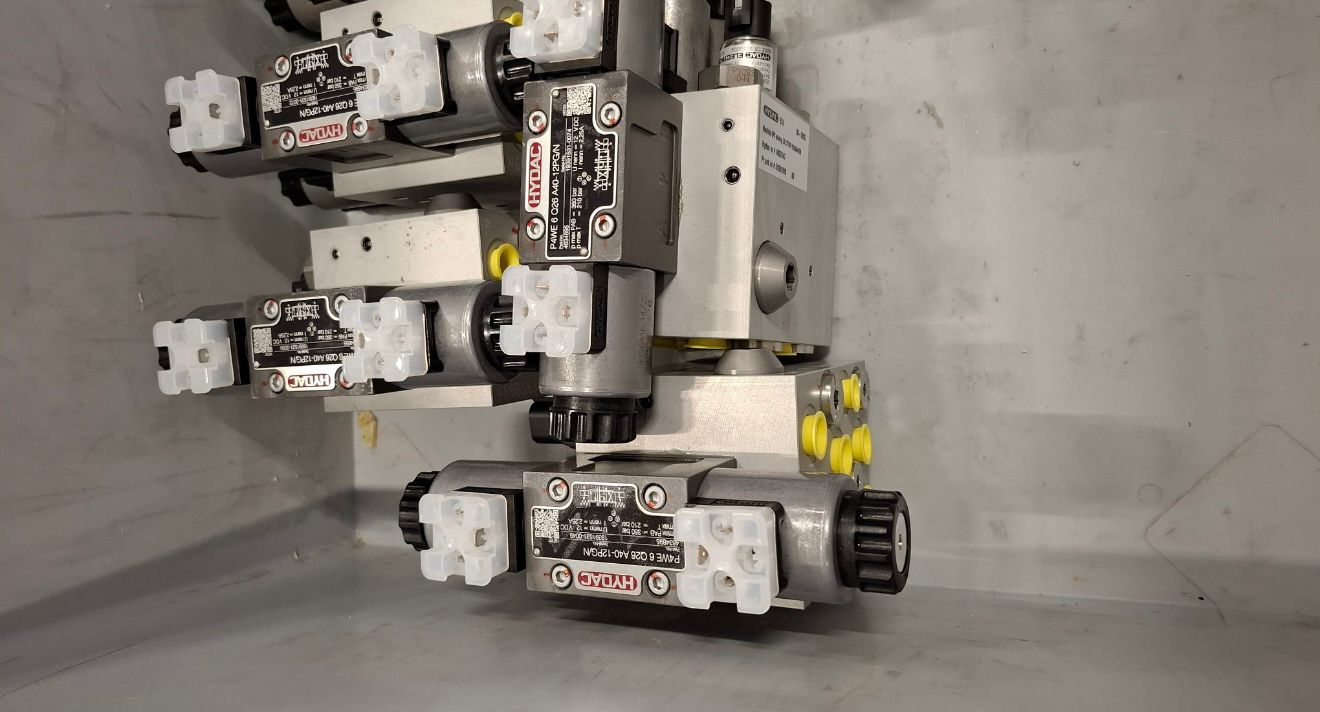

And this is how the build will look like, small and compact and manifold is aluminum.
The pressure sensor has a 3 pin Deutsch connector
The lock valves a 2 pin Deutsch Connector
We will order soon.
Be in time for the first batch and place order if you want.
Waiting time will be a round 1,5 á 2 months! from order date.
Next batch will be faster!
Regards,
Team AogRtk
3 Likes

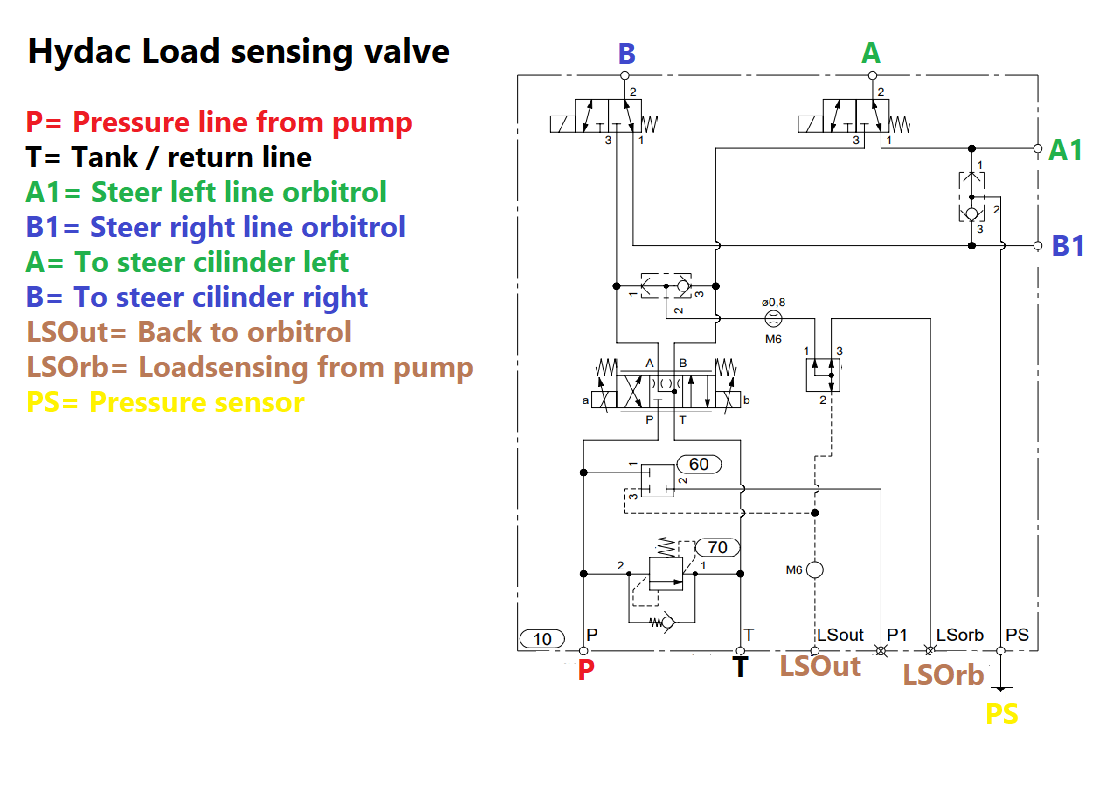

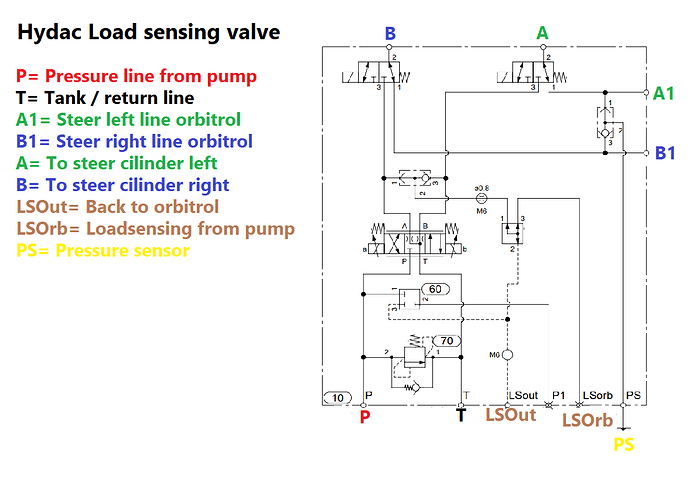

Here is connection Diagram for Hydac Load sensing!
More sheets will follow soon from the other valves.
1 Like
looks good.
is there any significant difference to the well known valves from poland?
Did you or one of your customers ever get a tractor with your valve certfied by German TÜV or similiar?
Any plans to do so?
There are a few, build is different and internal is different. Its a all in one valve. So same valve can be used for OC as LS.
As far is know nobody did this. All the parts from hydac are CE certificated. So maybe its possible.
Let me know if you need more info.
We orderd a batch alresdy so hope to a have a few in stock soon. But already some are sold. So if anyone is intrested and dont wanna wait they need to order.

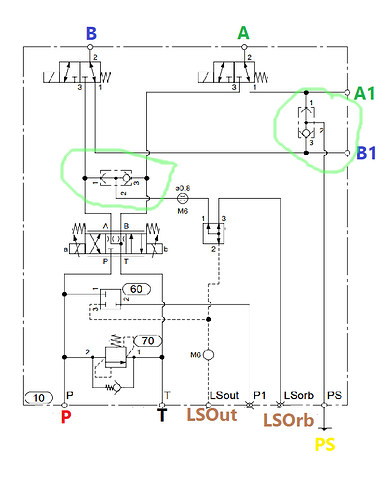

my eyes where catched by a violation of symmetry in the shuttle(?) valves.
Is this planned, or accitdent, or just missing in the CAD model?
Ah … usually the ball is pictured in the middle, in the transitional state, right?
Its just for illustration.
New information:
We had some sad word from hydac that production factory had some problems. So delivery date for hydac valves is around end of august.
I am sorry, for those who have orderd and can not wait that long. Please email us if you want to cancel your order and refund.
We are very sorry and hope they can speed up a little so it will be earlier.
Regards
