Wheel Angle Sensor Installation Examples - Lots of Pictures

Hardware Autosteer
125

Yes there is a OEM sensor in the kingpin, it was a backup plan.

The linear sensor took minutes to fit and works really well, if it fails can be replaced in minutes for £30.

1 Like
126

Do you have a link to that linear sensor?

127

Linear Sensor for sale | eBay

measure your ram stroke,min to max then order the next size up :+1:

1 Like
128

a quick solution in case of trouble to recatch autosteer and find better time to do better sensor

3 Likes
129

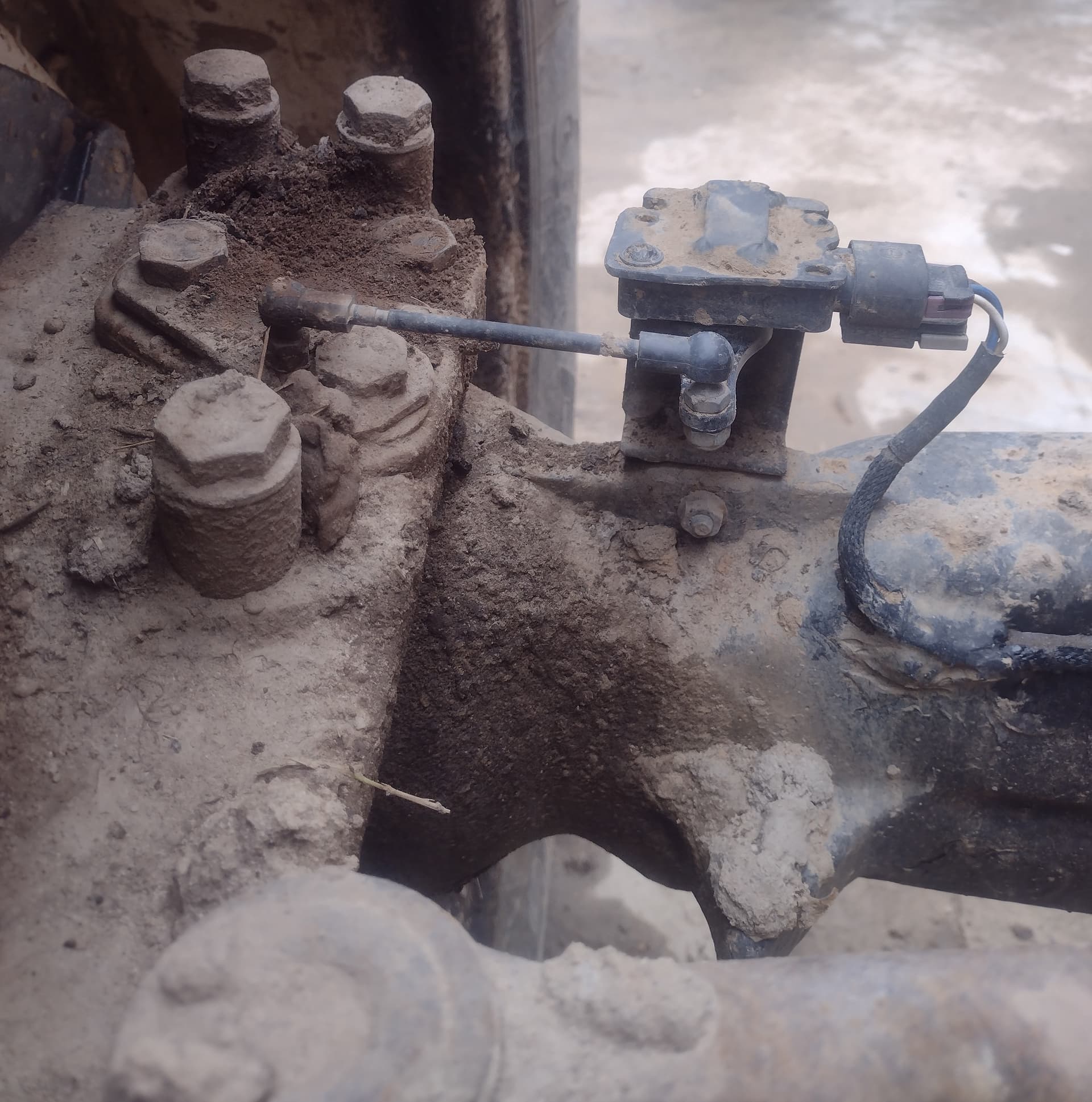

Here is my solution for sensot on a New Holland T7.210 Terraglide™ axle.

Delphi WAS
Delphi WAS2000×924 302 KB

130

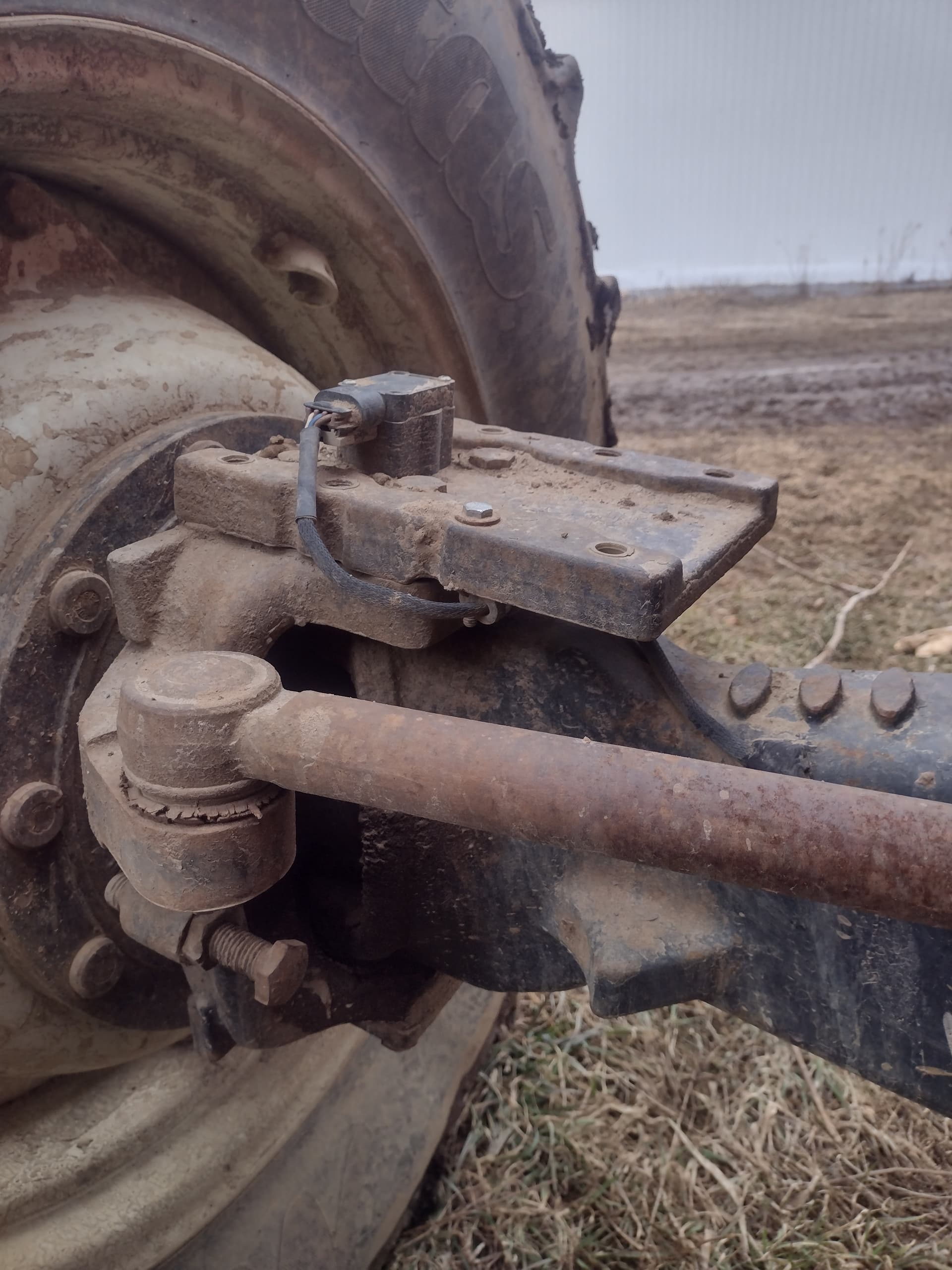

5$ Princess Auto sensors

IMG_20250415_161550140
IMG_20250415_1615501401920×2560 331 KB

IMG_20250415_161556921
IMG_20250415_1615569211920×2560 293 KB

IMG_20250415_161607129~2
IMG_20250415_161607129~21920×1938 292 KB

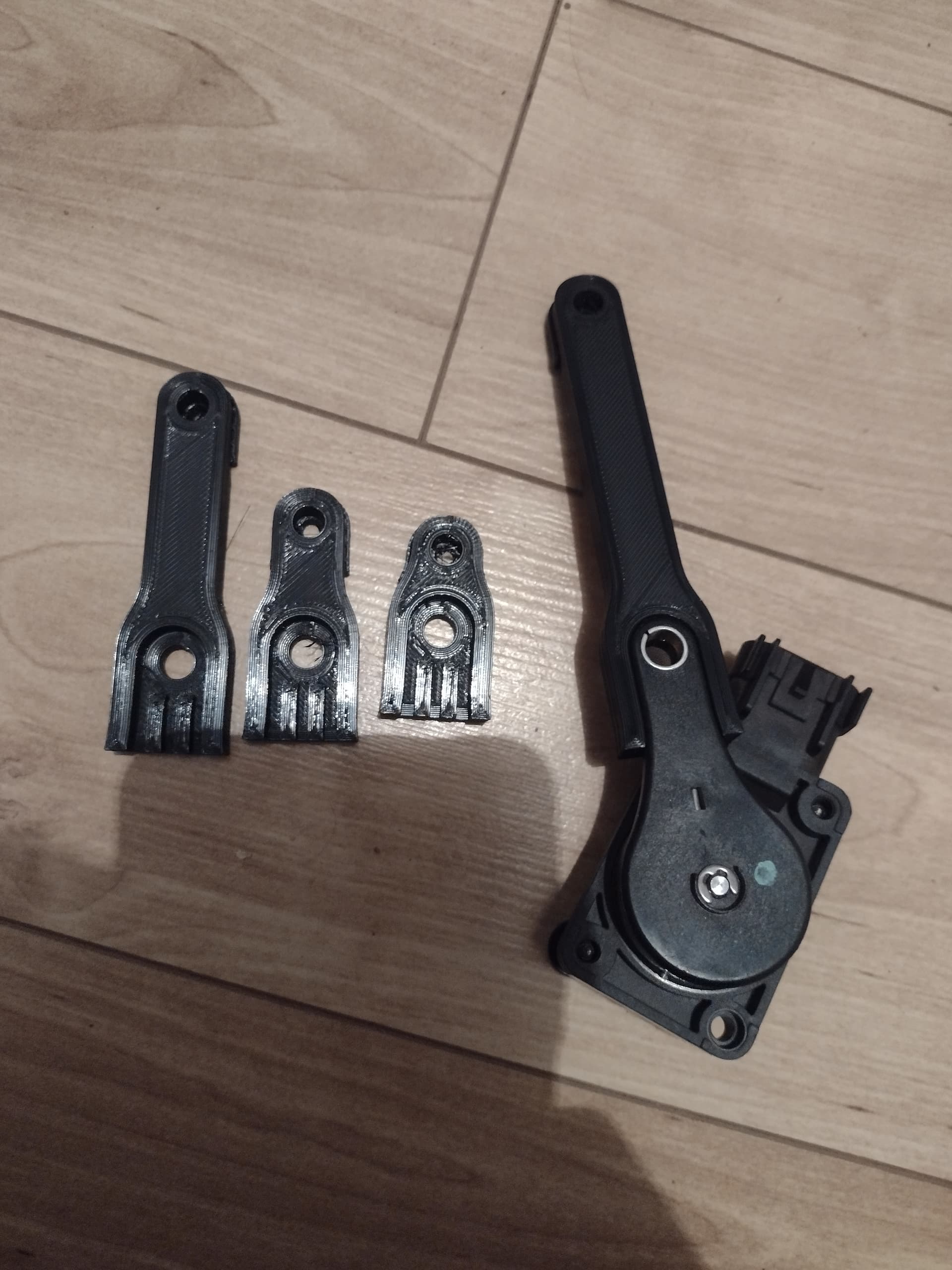

Here with 3D printed parts to be monted on the kingpin.

IMG_20250415_164545003_HDR
IMG_20250415_164545003_HDR1920×2560 310 KB

Some arm expenders

IMG_20250417_200537120
IMG_20250417_2005371201920×2560 274 KB

1 Like
131

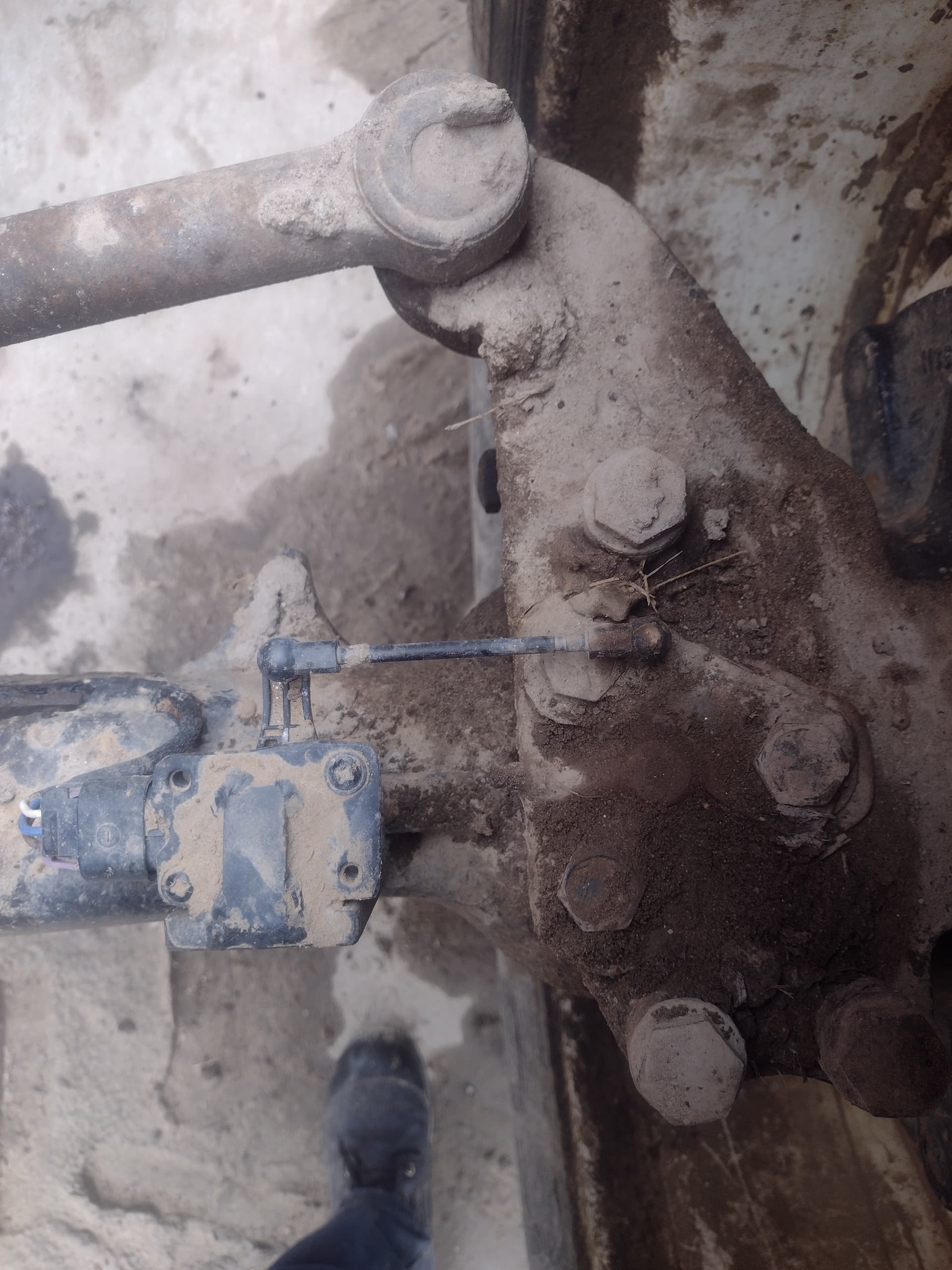

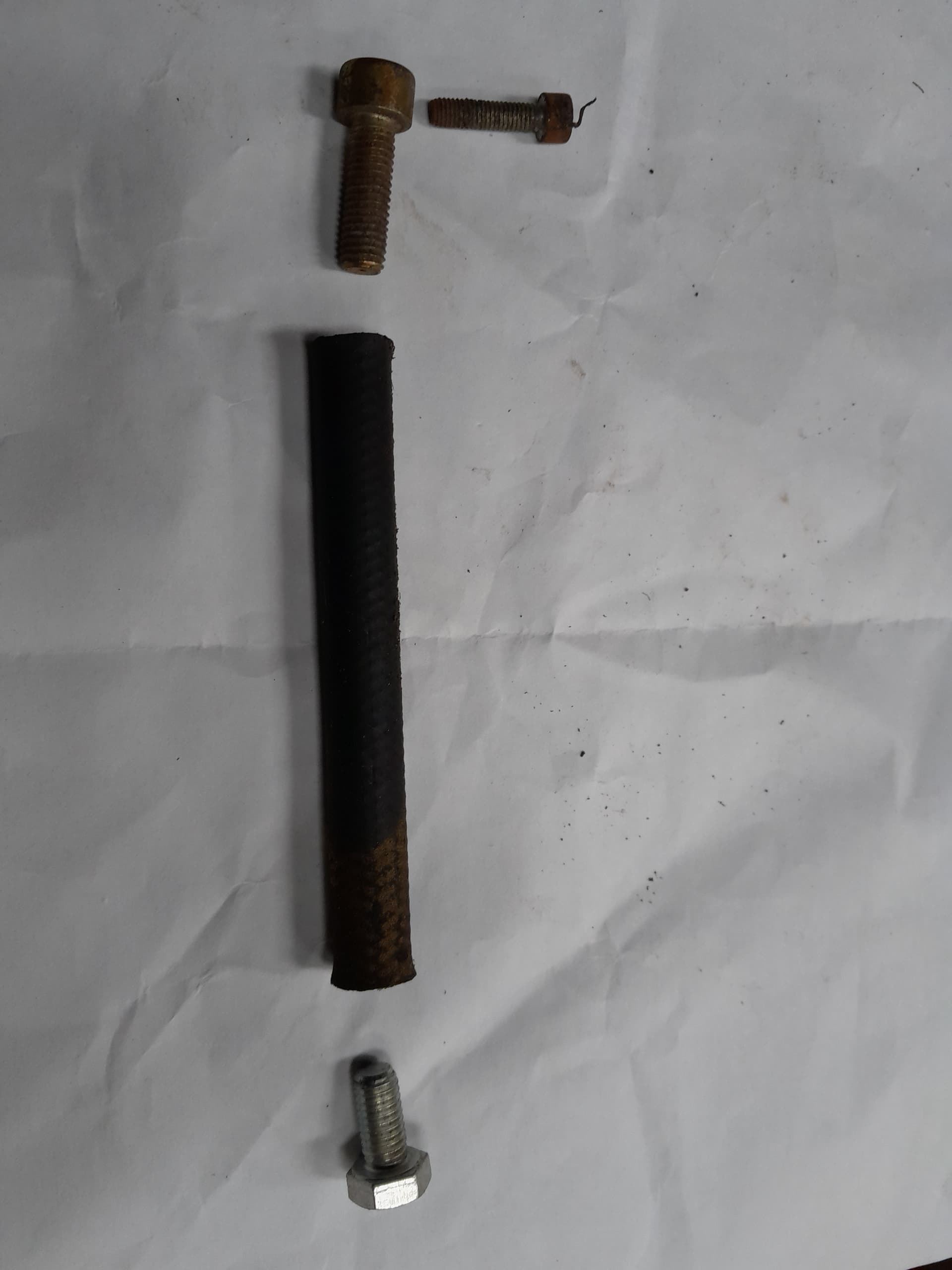

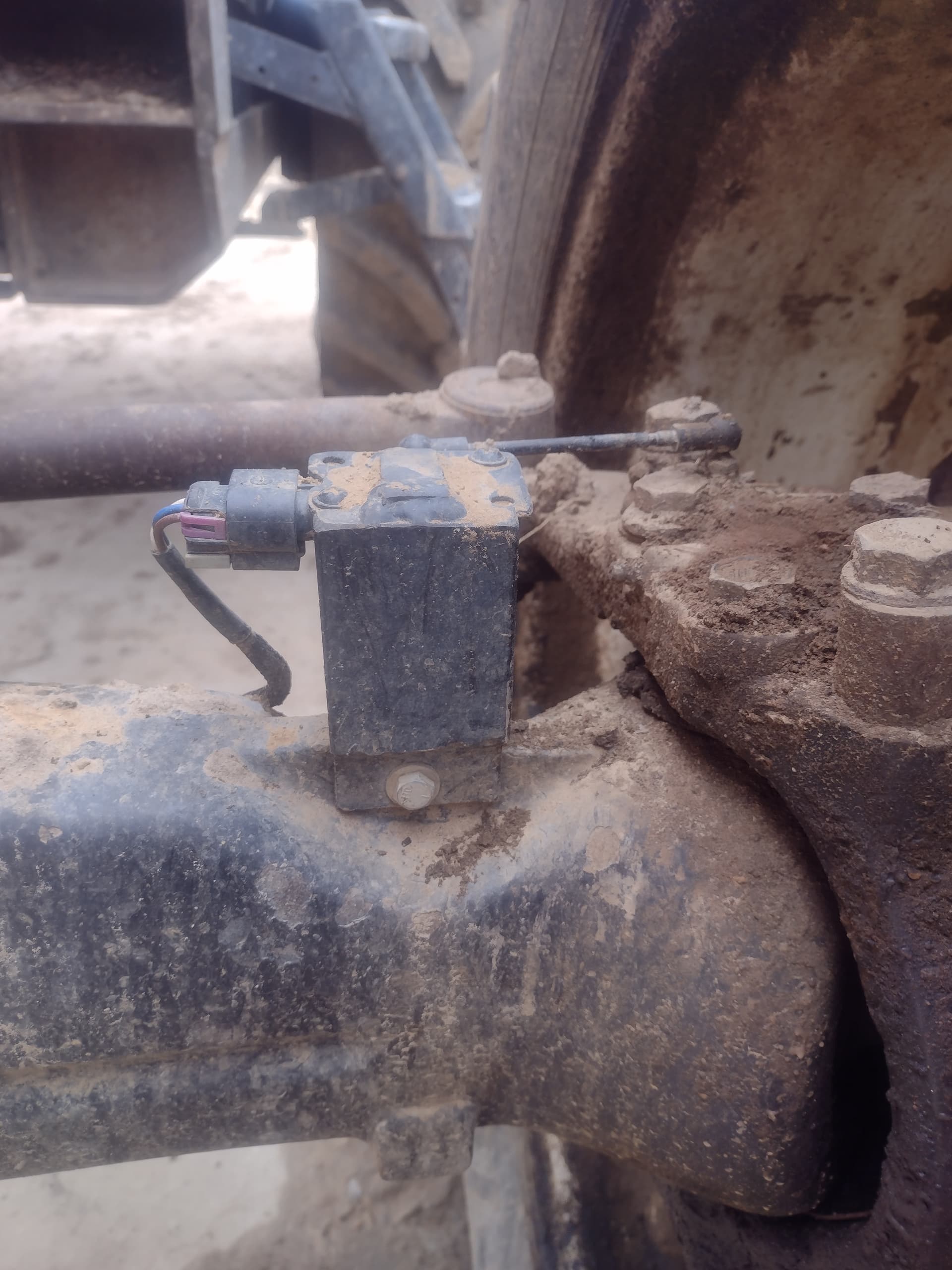

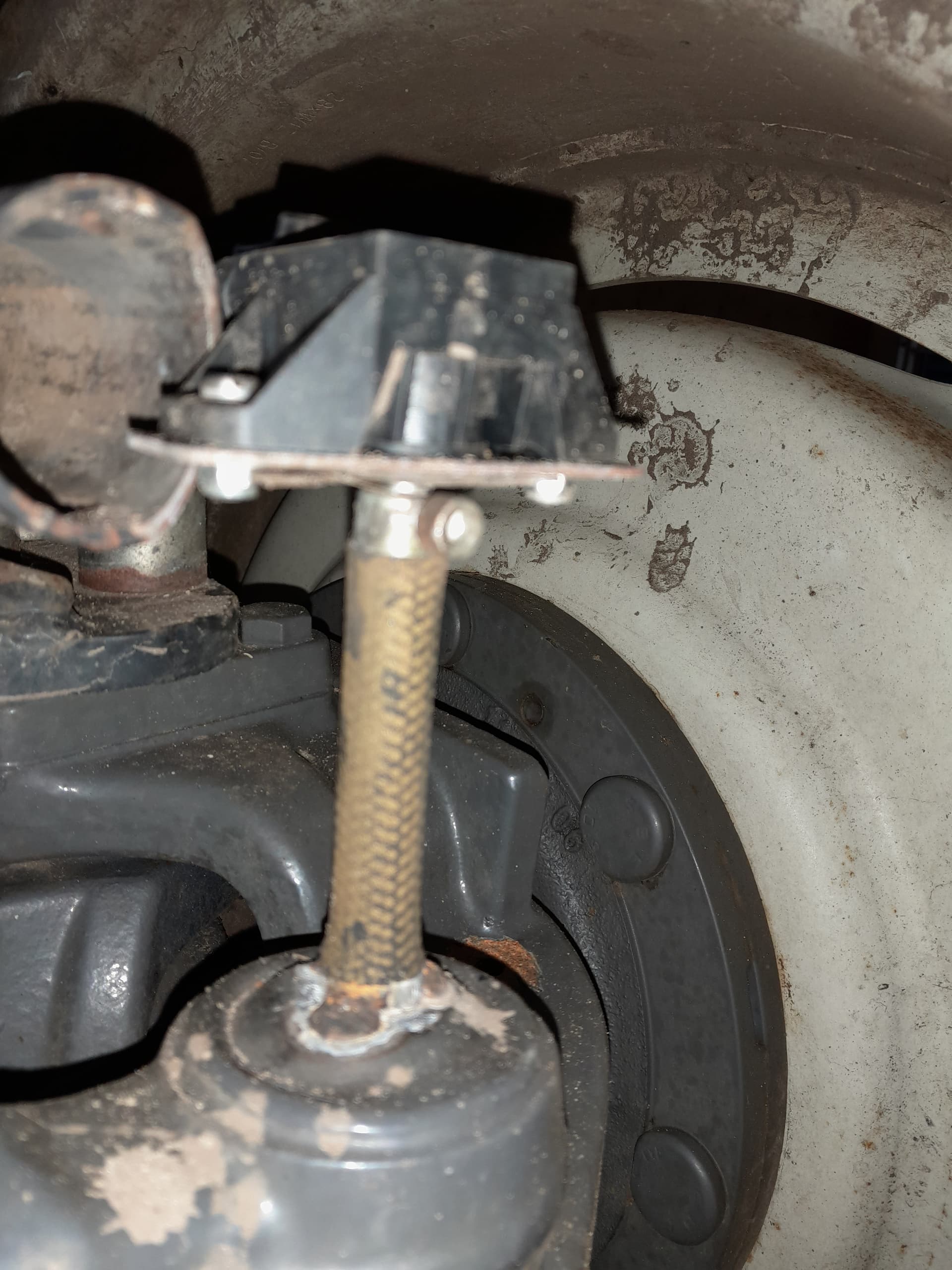

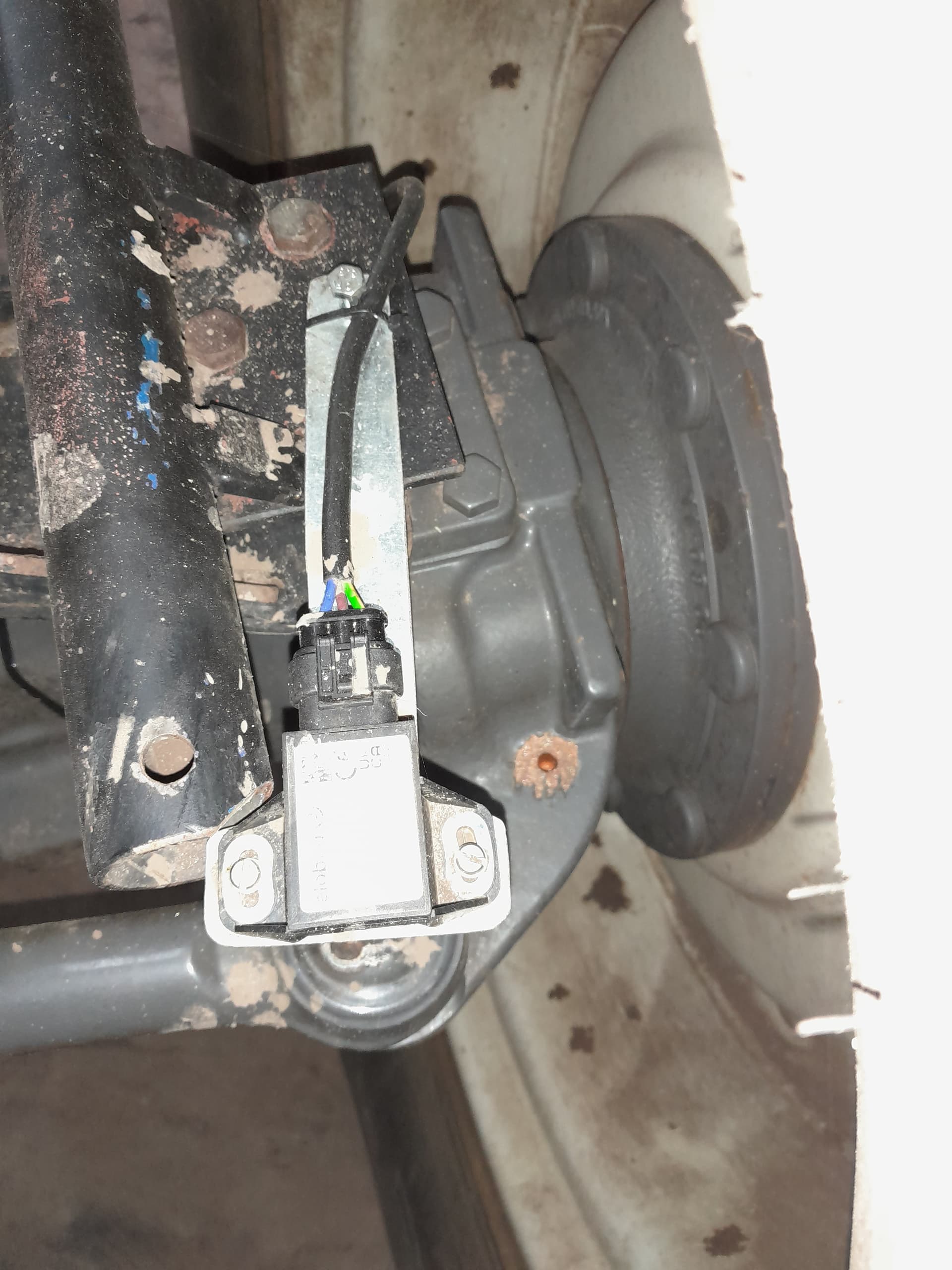

Here is my setup, a piece of hydraulic hose will flex but not twist, 8 mm bolt fit inside

20231006_102628
20231006_1026281920×2560 327 KB

20231006_102612
20231006_1026121920×2560 286 KB

20231006_103148
20231006_1031481920×2560 108 KB

5 Likes
132

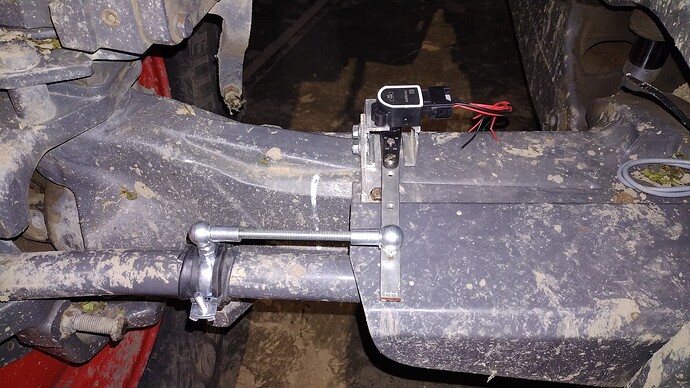

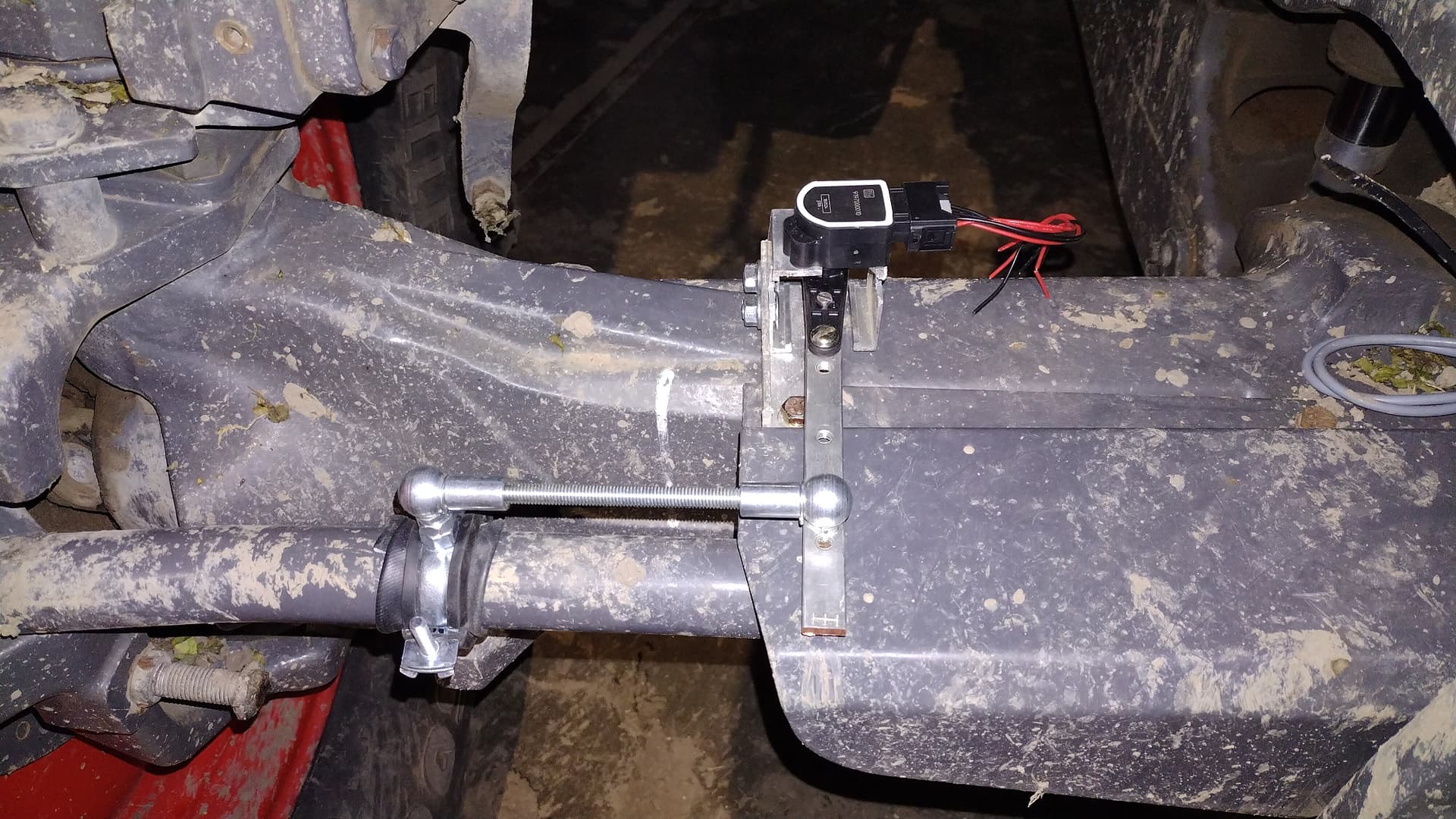

Here are pictures of my KYOCERA/AVX 9197000010 installations. The ball joints have M8 thread.

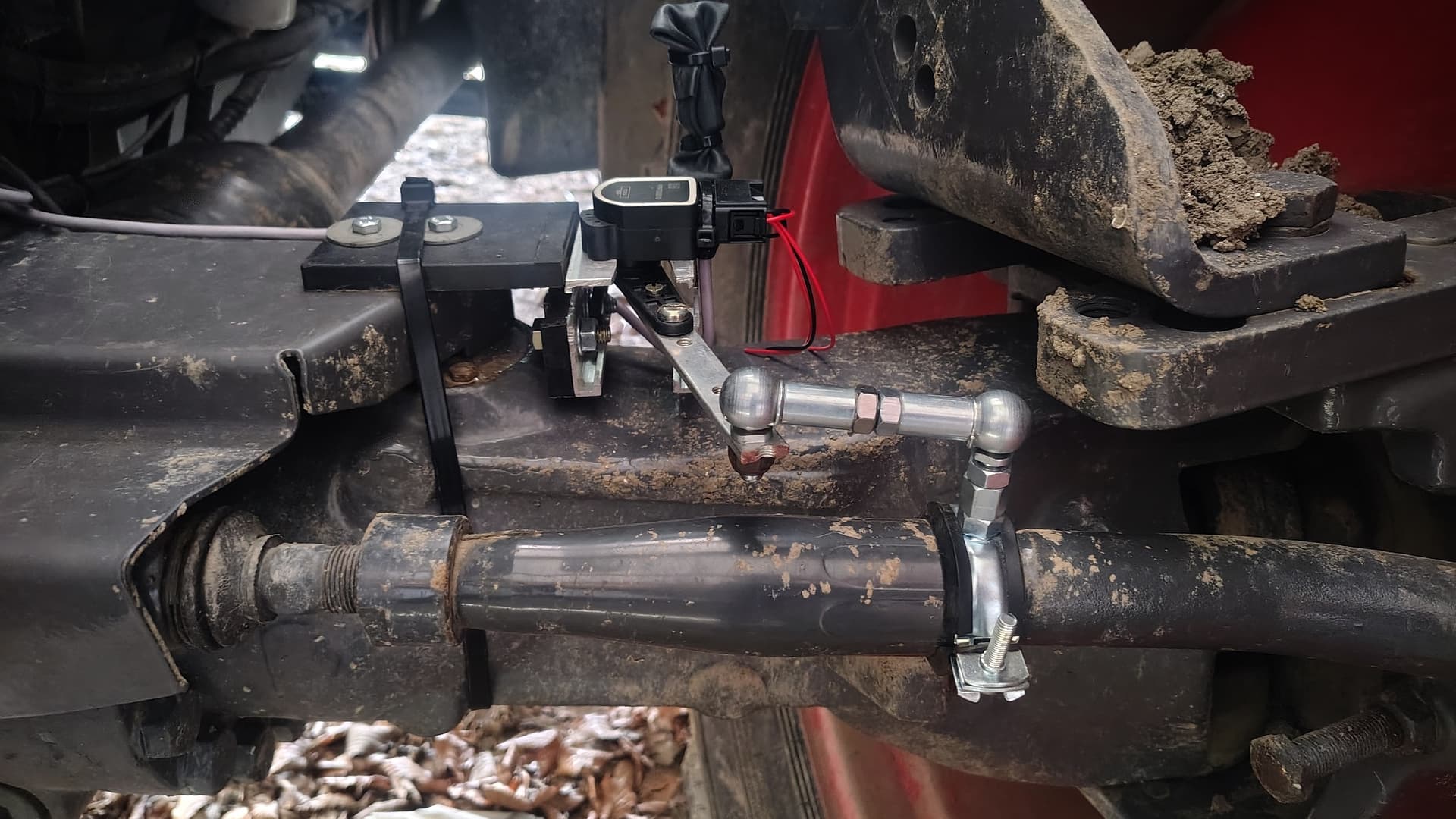

Fendt 820 COMIII

IMG_20241222_155945
IMG_20241222_1559451920×1080 281 KB

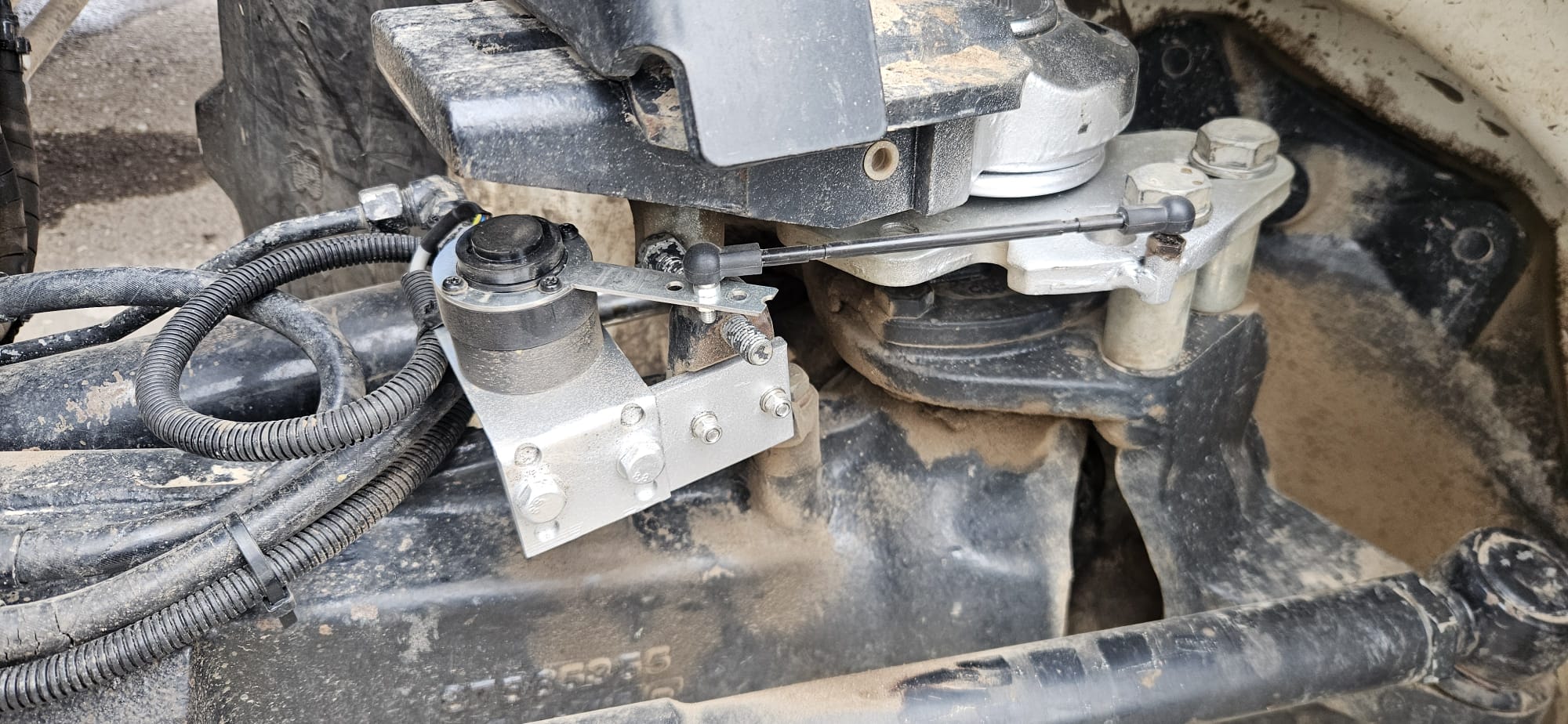

Fendt 415

IMG_20250320_121608352_HDR
IMG_20250320_121608352_HDR1920×1440 217 KB

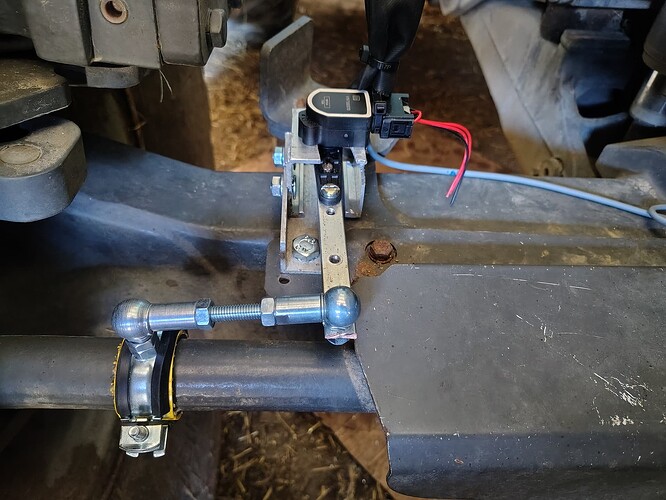

Fendt 514C

IMG_20250418_140858375_HDR
IMG_20250418_140858375_HDR1920×1080 202 KB

1 Like
133

Do you get and false readings from the sensor when the axle moves up and down?

134

Hi Pat. What plugs are you using for the Princess Auto sensors? I have some sensors but not sure what plug fits them. Thanks

135

Here check this thread:

136

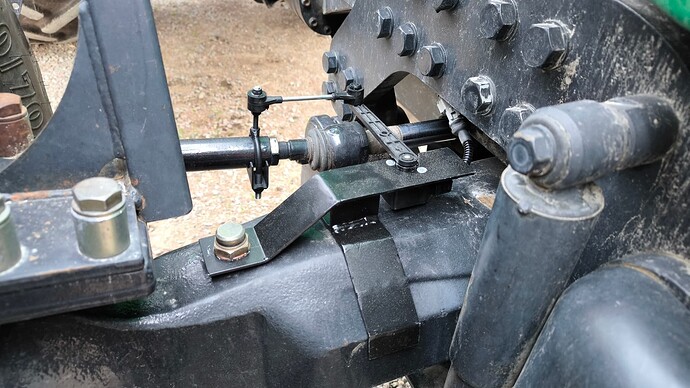

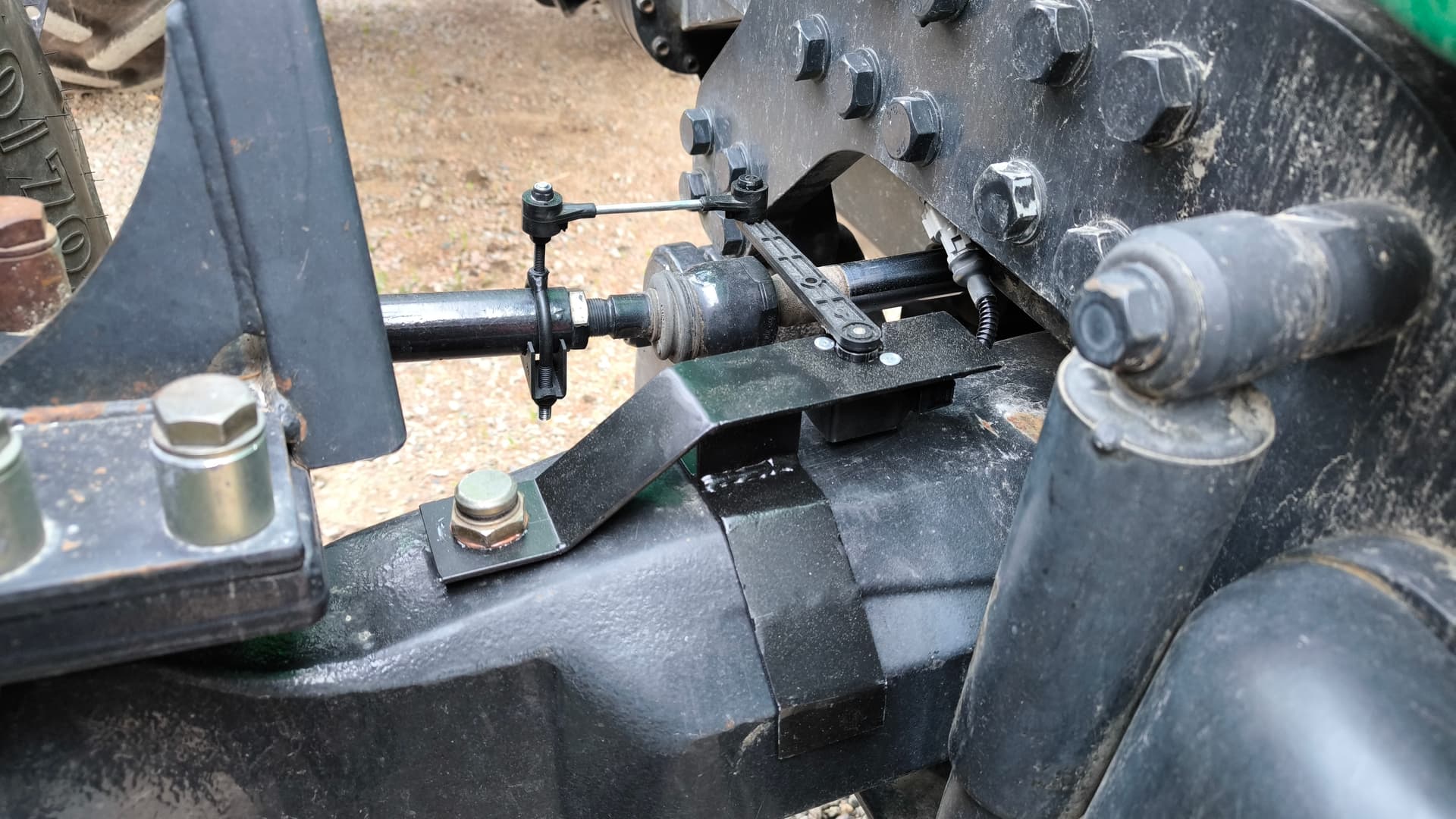

2025-05-26 20.00.04
2025-05-26 20.00.041920×1080 215 KB

Valtra T0

3 Likes
